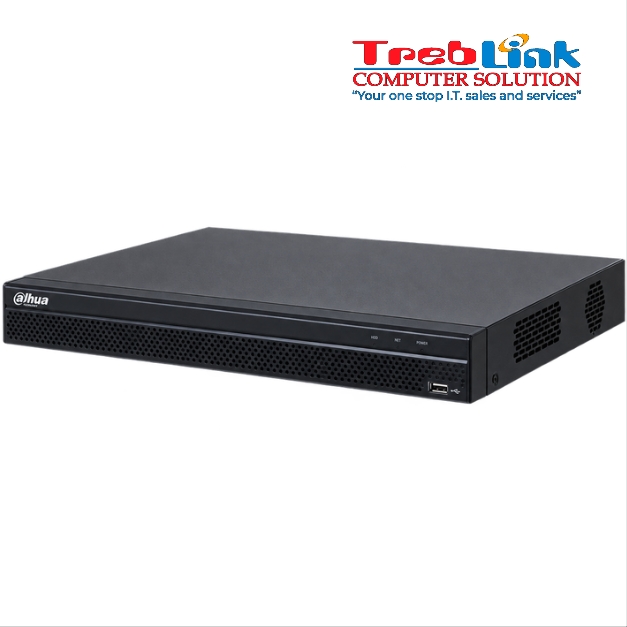

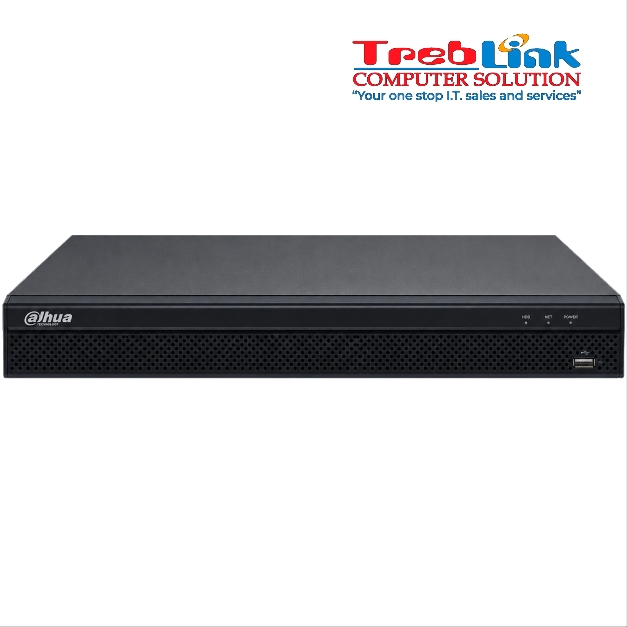

NVR4216-4KS2/L
• 1. 8ch@1080P decoding
• 2. Combined with TiOC IPC 3 Series, realizes smart dual light solution
Out of Stock
Currently unavailable
Sold Out
System
Main Processor
Industrial-grade embedded processor
OS
Embedded Linux
Operation Interface
Web / Local GUI
AI Functions
Perimeter Protection by Camera
8 channels
Perimeter Protection AI Search
Search for pictures by channel, time, and event type
Face Detection by Camera
4 channels
Face Attributes
6 attributes: gender, age, glasses, expression, mouth mask, and beard
Face AI Search
Search for pictures by channel, time, and face attributes
SMD Plus by Camera
12 channels
SMD Plus AI Search
Search by target classification (human, vehicle)
Video
Access Channel
16 channels
Network Bandwidth
Access: 160 Mbps; Storage: 160 Mbps; Forward: 64 Mbps
Resolution
8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1
Decoding Capability
8 × 1080p @ 30 fps
Video Output
1 × VGA output and 1 × HDMI output; supports simultaneous video output through VGA and HDMI
Multi-screen Display
1, 4, 8, 9, and 16 views
Third-party Camera Access
ONVIF; RTSP
Compression
Video Compression
Smart H.265 / H.265 / Smart H.264 / H.264 / MJPEG
Audio Compression
PCM / G711A / G711U / G726 / AAC
Network
Network Protocol
HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (supports Dahua IP cameras, DVRs, NVS, etc.); P2P; Auto Register
Mobile Phone Access
Android; iOS
Interoperability
ONVIF (Profile T/S/G); CGI; SDK
Browser
Chrome; IE9 or later; Firefox
Record Playback
Multi-channel Playback
Up to 16 channels for playback
Record Mode
Manual recording; alarm recording; SMD recording; smart recording
Storage
Local HDD; network storage
Backup
USB storage device
Playback Function
Play, pause, stop, slow playback, fast playback, backward playback, and frame-by-frame playback. Supports full screen, video clip/file backup, partial zoom, and audio on/off.
Storage
Disk Group
Supported
HDD Interface
2 × SATA III ports
Maximum HDD Capacity
Up to 10 TB per HDD. Maximum capacity varies depending on ambient temperature.
Alarm
General Alarm
Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm
Anomaly Alarm
Camera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; cybersecurity exception
Intelligent Alarm
Face detection; perimeter protection (intrusion and tripwire); IVS; people counting; heat map; SMD alarms
Alarm Linkage
Recording; snapshot; audio; buzzer; log; preset; email
Alarm Input
4
Alarm Output
2
External Ports
Audio Input
1 × RCA input
Audio Output
1 × RCA output
USB
2 ports: 1 × front USB 2.0; 1 × rear USB 2.0
HDMI
1 port; supports up to 4K resolution output
VGA
1 port
Network Interface
1 × RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
General Parameters
Power Supply
12 V DC, 4 A
Power Consumption
Less than 10 W (excluding HDD, idling)
Net Weight
1.51 kg (3.33 lb)
Gross Weight
2.76 kg (6.08 lb)
Product Dimensions
375 mm × 282.4 mm × 53 mm (14.76″ × 11.12″ × 2.09″) (W × L × H)
Package Dimensions
141 mm × 433 mm × 366 mm (5.55″ × 17.05″ × 14.41″) (W × L × H)
Operating Conditions
−10 °C to +55 °C (+10 °F to +131 °F)
Storage Conditions
0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity
10%–93%
Storage Humidity
30%–85%
Operating Altitude
Up to 3000 m (9842.52 ft)
Installation
Desktop mounted
Certifications
CE
EN 62368-1; EN 55032; EN 55024; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 50130-4
FCC
Part 15, Subpart B
