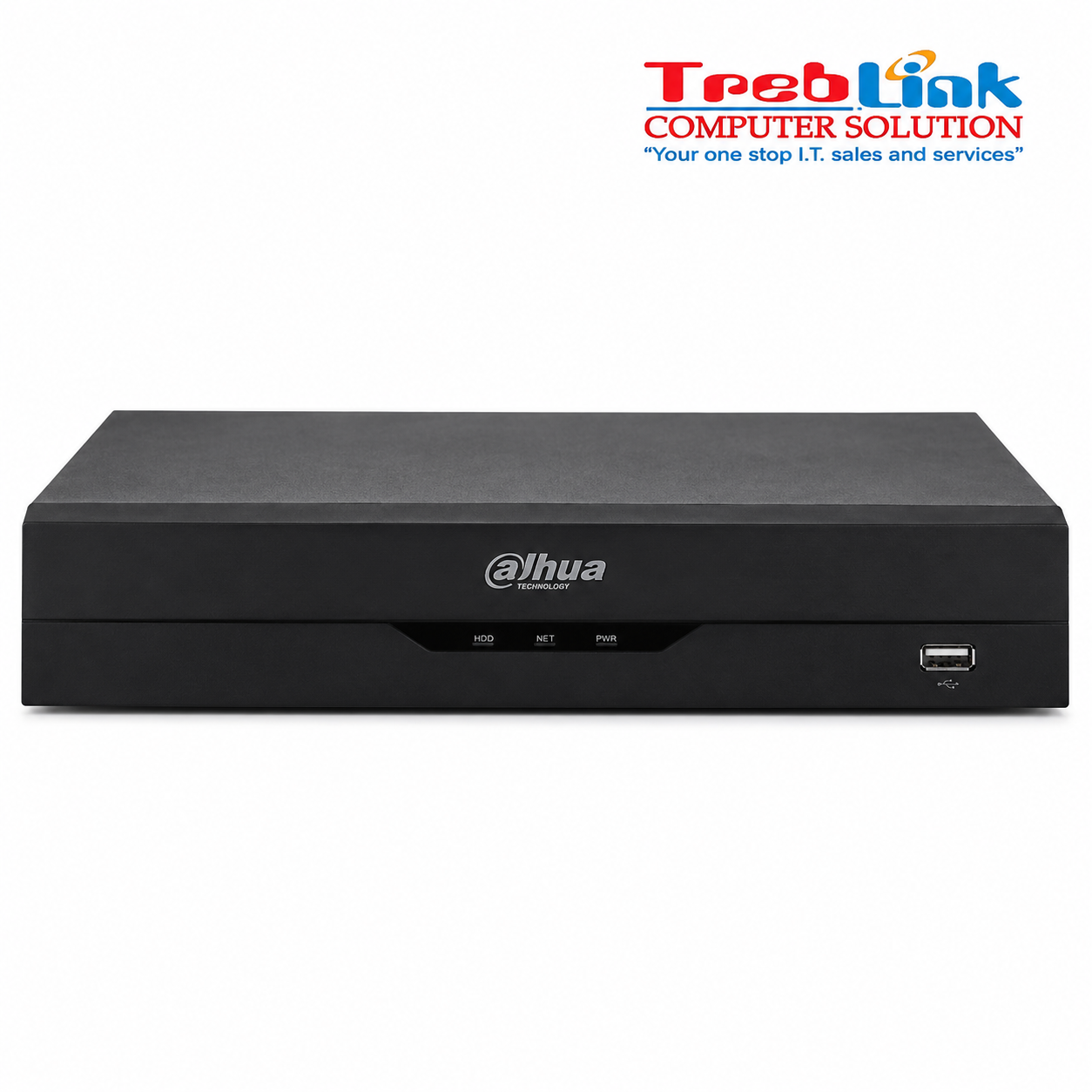

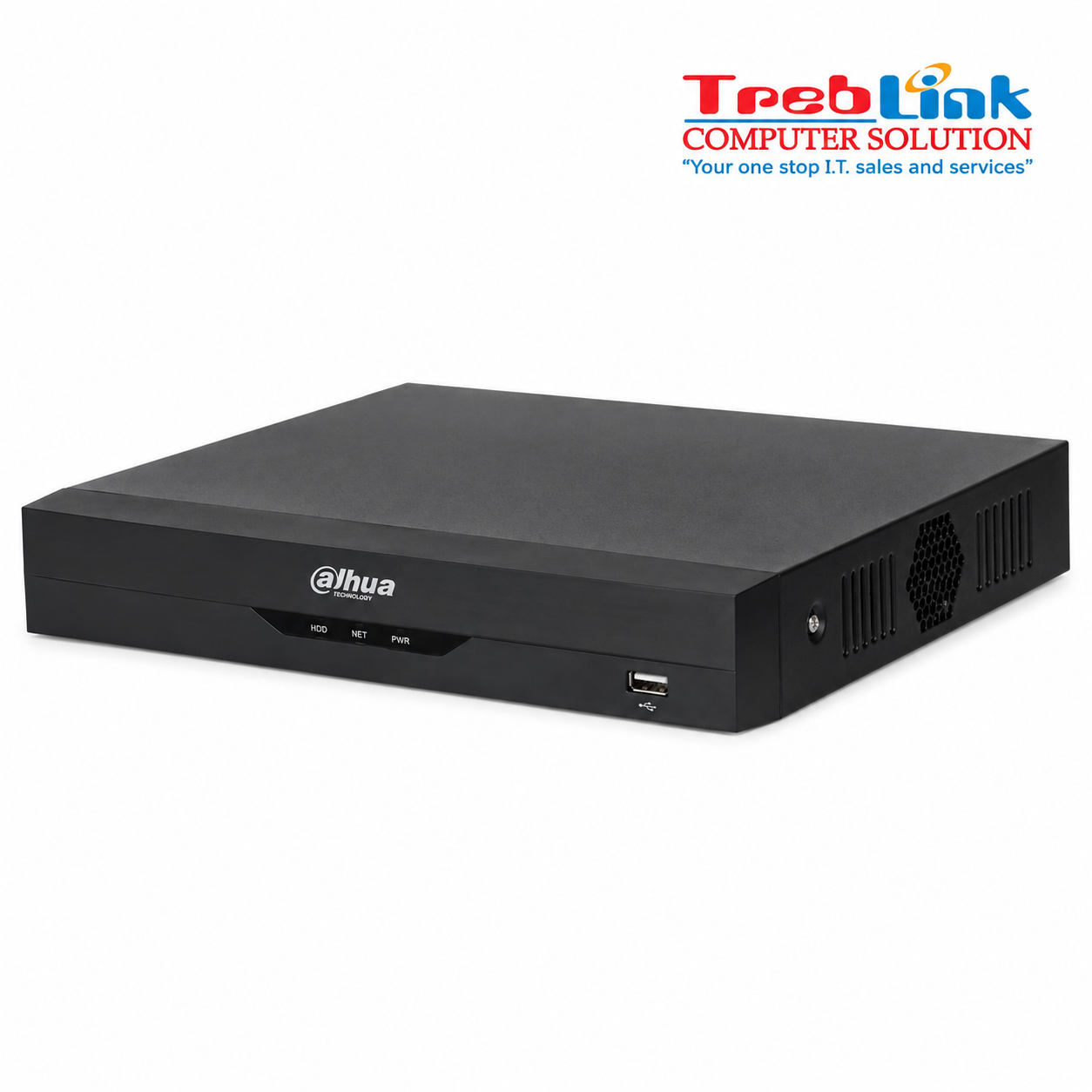

DAHUA DH-XVR5104HS-I3/T
Original price was: ₱4,098.00.₱3,560.00Current price is: ₱3,560.00.
The 4CH Penta-brid 5MP Value/1080P Compact 1U 1HDD WizSense Digital Video Recorder
is a compact and reliable DVR designed for advanced security monitoring, supporting
analog and IP cameras with intelligent AI-powered protection features.
- Video Input: 4-channel analog video input, up to 5MP-N @ 25fps / 1080P @ 25fps encoding
- IP Video: Up to 6-channel IP video input, supporting cameras up to 6MP
- Two-way Talk: 4-channel two-way audio communication
- AI Functions: 2-ch AcuPick, 2-ch Face Recognition, 4-ch Perimeter Protection, 4-ch SMD, and 4-ch AI Coding
- Storage: 1 HDD bay, supporting up to 16TB storage capacity
18 in stock
🟢 In Stock
Available Qty:
18
System
Main Processor
Industrial-grade processor
Operating System
Embedded Linux
Operating Interface
Web; Local GUI
AcuPick
AcuPick Performance of AI by Recorder
2 channels
Perimeter Protection
Perimeter Performance AI by Recorder
4 channels, 10 IVS rules for each channel
Face Detection
Face Attributes
6 attributes
Face Detection Performance of AI by Recorder
2 channels (up to 8 face images/s each channel)
Face Recognition
Face Database Capacity
Up to 10 face databases with 10,000 images
Face Recognition Performance of AI by Recorder
2 channels
SMD
SMD Plus by Recorder
4 channels: Secondary filtering for human and vehicle,
reducing false alarms caused by leaves, rain and lighting
condition changes
reducing false alarms caused by leaves, rain and lighting
condition changes
SMD by Camera
6 channels
AI Video Quality Analytics
AI Video Quality Analytics by Recorder
4 channels: Supports detecting brightness levels,
color cast, defocus, overexposure, contrast levels,
black and white
color cast, defocus, overexposure, contrast levels,
black and white
Scene Changing
Scene Changing by Recorder
1 channel
Audio and Video
Analog Camera Input
4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input
CVI: 5MP @25fps; 5MP @20fps; 5MP @10/12.5fps;
4MP @25/30fps; 1080p @25/30fps; 720p @50/60fps;
720p @25/30fps.
4MP @25/30fps; 1080p @25/30fps; 720p @50/60fps;
720p @25/30fps.
TVI: 5MP (2560 × 1944) @20fps;
5MP (2960 × 1665) @20/25fps;
4MP @25/30fps; 1080p @25/30fps;
720p @25/30fps.
AHD: 5MP @20fps; 4MP @25/30fps;
1080p @25/30fps; 720p @25/30fps.
IP Camera Input
Up to 6 channels of IPC access.
2 IP channels by default + 4 channels
(analog channels are converted to IP channels).
Incoming bandwidth: 32 Mbps;
recording bandwidth: 32 Mbps;
outgoing bandwidth: 32 Mbps.
2 IP channels by default + 4 channels
(analog channels are converted to IP channels).
Incoming bandwidth: 32 Mbps;
recording bandwidth: 32 Mbps;
outgoing bandwidth: 32 Mbps.
Encoding Capacity
Main Stream:
Channels 1–2: 5M-N @1–25fps
Other channels: 5M-N @1–12fps
Channels 1–2: 4M-N/1080p @1–30fps
Other channels: 4M-N/1080p @1–15fps
1080N/720p/960H/D1/CIF @1–30fps
Channels 1–2: 5M-N @1–25fps
Other channels: 5M-N @1–12fps
Channels 1–2: 4M-N/1080p @1–30fps
Other channels: 4M-N/1080p @1–15fps
1080N/720p/960H/D1/CIF @1–30fps
Sub Stream:
D1/CIF @1–15fps
With Encode Enhancement:
4-ch 5M-N @1–25fps
4-ch 4M-N/1080p @1–25fps
1080N/720p/960H/D1/CIF @1–30fps
Sub Stream: D1/CIF @1–15fps
Dual-stream
Yes
Video Bit Rate
32 kbps–6144 kbps
Audio Sampling
8 kHz, 16 bit
Audio Bit Rate
64 kbps
Video Output
1 HDMI, 1 VGA
HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display
IP extension disabled: 1/4
IP extension enabled: 1/4/6
IP extension enabled: 1/4/6
Third-party Camera Access
Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
Compression Standard
Video Compression
AI Coding; Smart H.265+; H.265;
Smart H.264+; H.264
Smart H.264+; H.264
Audio Compression
G.711a; G.711u; PCM
Network
Network Protocol
HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP;
NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP;
DDNS; SNMP; Alarm Server; P2P; Auto Registration;
IP Search
NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP;
DDNS; SNMP; Alarm Server; P2P; Auto Registration;
IP Search
Mobile Phone Access
iOS; Android
Interoperability
ONVIF 24.12 (Profile T; Profile S; Profile G);
CGI; SDK
CGI; SDK
Browser
Chrome; IE; Safari; Edge; Firefox
Recording Playback
Record Mode
General; Alarm; Motion Detection; Intelligent
Recording Playback
1/4
Backup Method
USB device and network
Playback Mode
Instant playback; General playback;
Event playback; Tag playback; Smart playback
Event playback; Tag playback; Smart playback
Alarm
General Alarm
Motion detection; Alarm box; HDCVI alarm;
Camera external alarm; Network alarm; PIR alarm
Camera external alarm; Network alarm; PIR alarm
Anomaly Alarm
Error (no disk; disk error; low space;
low quota space; network disconnection;
IP conflict; MAC conflict); Video loss;
Video tampering; Camera offline
low quota space; network disconnection;
IP conflict; MAC conflict); Video loss;
Video tampering; Camera offline
Intelligent Alarm
Face detection; Face recognition;
Perimeter protection; SMD Plus
Perimeter protection; SMD Plus
Alarm Linkage
Record; Snapshot (panoramic);
IPC external alarm output; Audio; Buzzer;
Log; Preset; Email
IPC external alarm output; Audio; Buzzer;
Log; Preset; Email

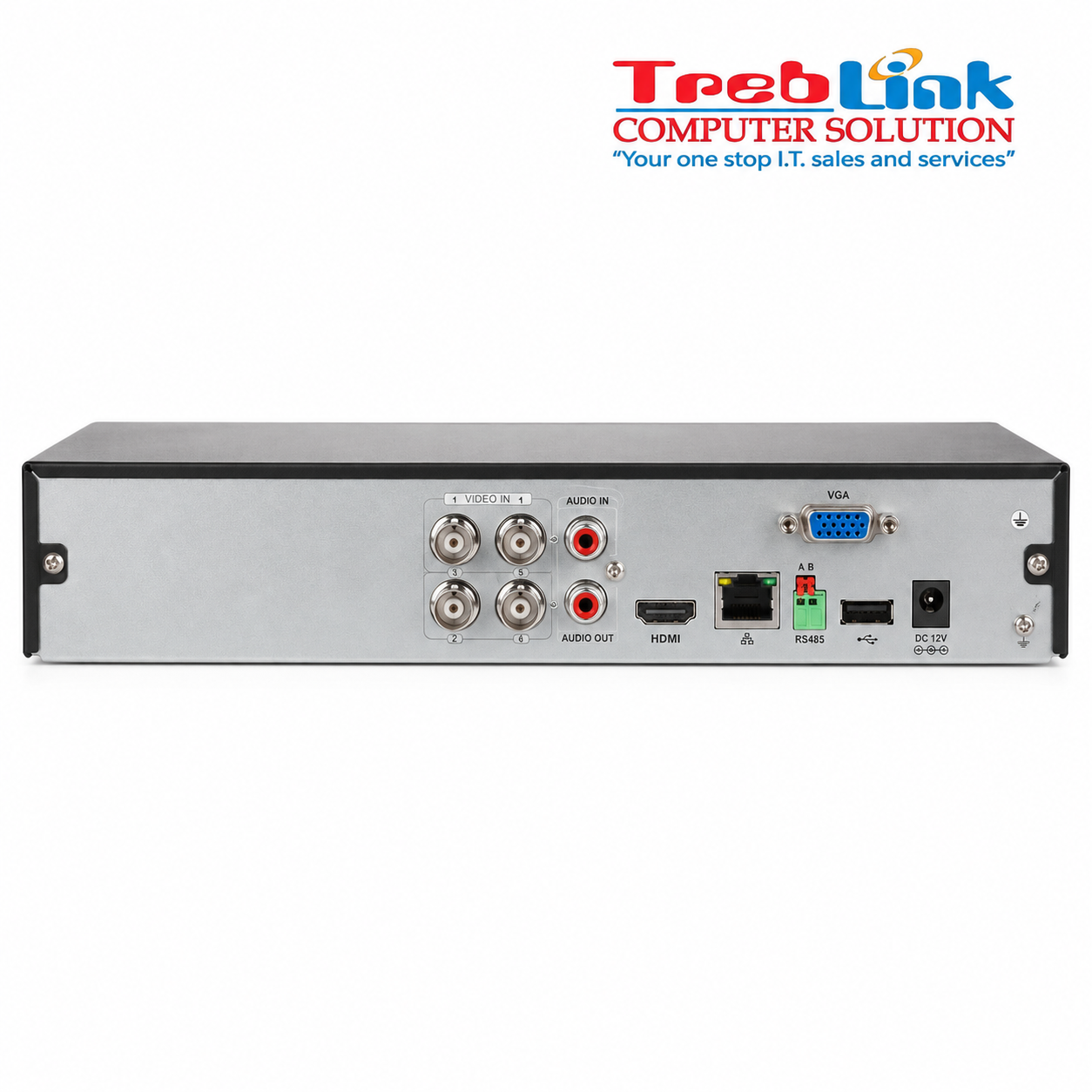

Ports
Audio Input
1-channel RCA
4-channel BNC (Coaxial Audio)
4-channel BNC (Coaxial Audio)
Audio Output
1-channel RCA
Two-way Talk
Coaxial two-way talk: 4-channel BNC
Local and network user two-way talk:
Shares the same audio input with the first channel
Local and network user two-way talk:
Shares the same audio input with the first channel
Disk Interface
1 SATA port, up to 16 TB
RS-485
1
USB
2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
HDMI
1
VGA
1
Network Port
1 (10/100 Mbps Ethernet port, RJ-45)
General
Power Supply
12 VDC, 1.5 A
Power Consumption
<5 W (without HDD)
Net Weight
0.84 kg (1.85 lb)
Gross Weight
1.41 kg (3.11 lb)
Product Dimensions
260.0 × 237.8 × 47.6 mm
(W × D × H)
(W × D × H)
Packaging Dimensions
344.0 × 89.0 × 287.0 mm
(W × D × H)
(W × D × H)
Operating Temperature
–10 °C to +55 °C
Storage Temperature
–20 °C to +60 °C
Operating Humidity
10%–90% RH, non-condensing
Installation
Desktop
Certifications
CE-LVD: IEC 62368-1:2014
CE-EMC: EN IEC 61000-3-2:2019
EN 61000-3-3:2013+A1:2019
EN 55032:2015+A11:2020
EN 55035:2017+A11:2020
EN 55024:2010+A1:2015
EN 50130-4:2011+A1:2014
CE-EMC: EN IEC 61000-3-2:2019
EN 61000-3-3:2013+A1:2019
EN 55032:2015+A11:2020
EN 55035:2017+A11:2020
EN 55024:2010+A1:2015
EN 50130-4:2011+A1:2014
