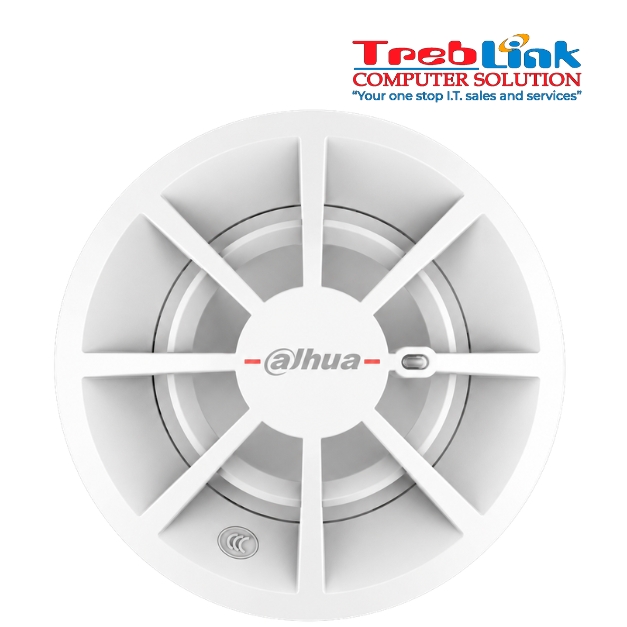

HY-C132 Conventional Heat Detector
Simple design;
Easy to install;
A2R heat sensor;
Compatible with third-party panels;
In Stock
Available Qty: 4
Model Information
Model
Dahua DHI-HY-C132
Device Type
Conventional Heat Detector
Electrical Specifications
Working Voltage
DC 9V–DC 30V
Rated Power
3.408 mW
Standby Current
≤ 45μA
Alarm Current
≤ 24mA
Detection Specifications
Sensor Class
A2R
Fixed Detection Threshold
62°C ± 3°C (144°F ± 37.4°F)
Dynamic Detection
1 to 30 K min⁻¹
Alarm Mode
Visual Alarm
Coverage Area
H ≤ 4 m (13.12 ft): 50 m²
4 m (13.12 ft) ≤ H ≤ 12 m (39.37 ft): 30 m²
Environmental Specifications
Operating Temperature
–10°C to +50°C (+14°F to +122°F)
Operating Humidity
≤ 95% RH (no condensation)
Physical Specifications
Dimensions (with base)
Φ100 mm × 50 mm (Φ3.00″ × 2.13″)
Weight (with base)
81 g (0.18 lb)
Installation
Installation Type
Ceiling Mount
Compliance & Standards
Compliance Standard
EN 54-5
Response Time Limits
| Rate of Rise of Air Temperature (K min⁻¹) | Lower Limit (min) | Lower Limit (s) | Upper Limit (min) | Upper Limit (s) |
|---|---|---|---|---|
| 1 | 29 | 0 | 46 | 0 |
| 3 | 7 | 13 | 16 | 0 |
| 5 | 4 | 9 | 10 | 0 |
| 10 | 2 | 0 | 5 | 30 |
| 20 | 1 | 0 | 3 | 13 |
| 30 | 40 | 2 | 25 | — |
