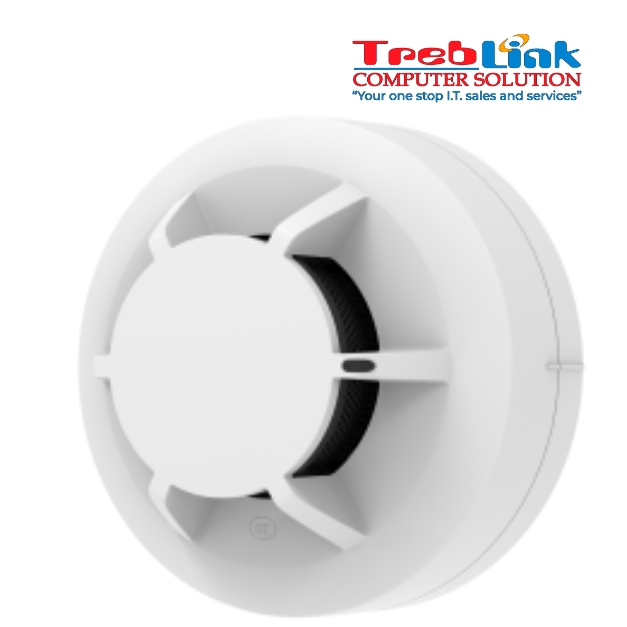

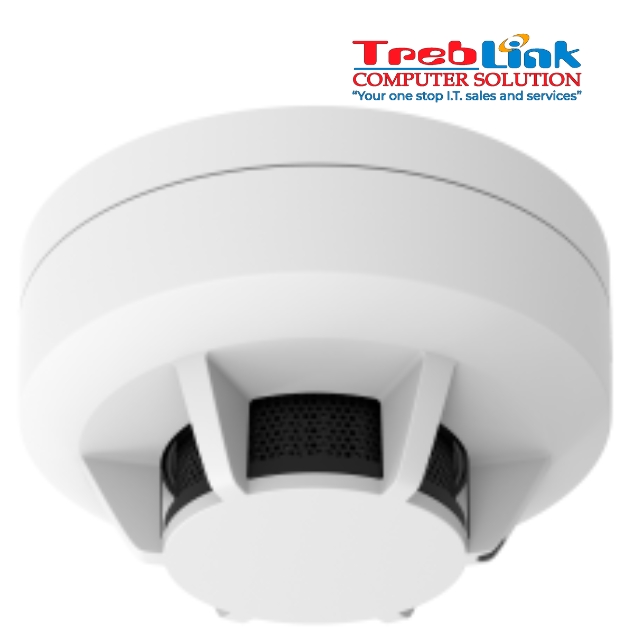

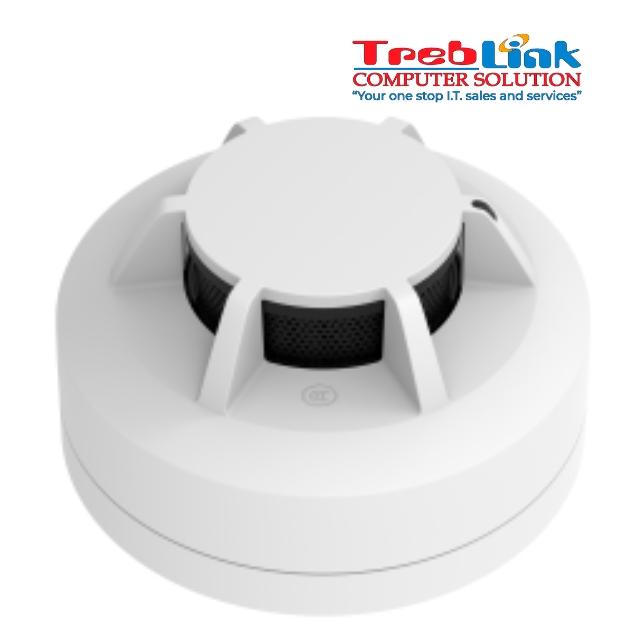

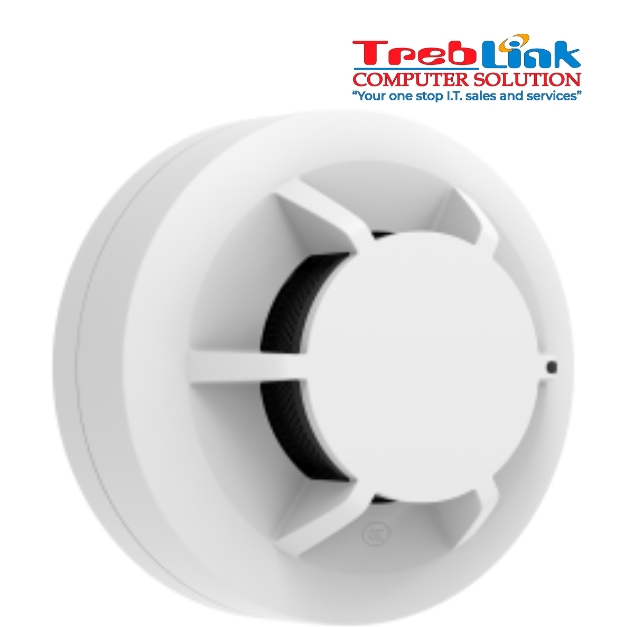

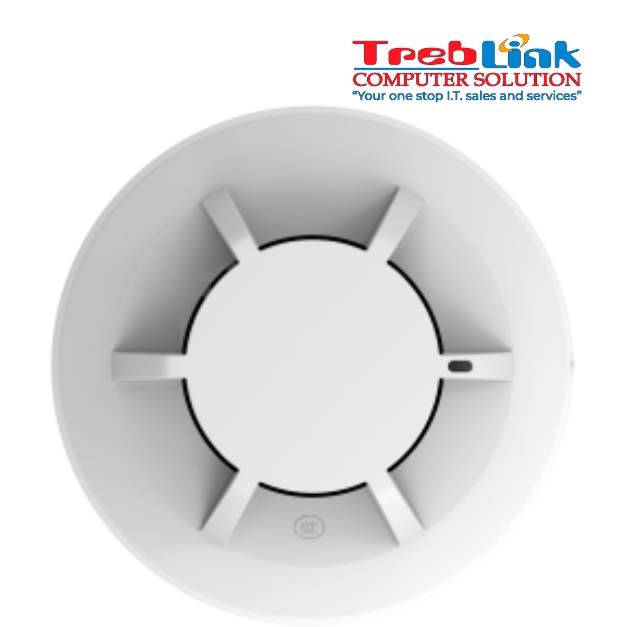

HY-1301 Addressable Smoke Detector
2-Wire Smoke Detector with Base
In Stock
Available Qty: 4
Technical Specification
Working Voltage
24V DC
Current
Monitoring Current: ≤ 180μA
Maximum Operating Current: ≤ 280μA
Indicator
Red
Polling: Flash 6 seconds
Alarm: Remain lit
Fault: Flash 2 seconds
Wiring
Two-wire, polarity-free
Addressing Method
Electrical encoder
Address Range
1–254
Communication Distance
≤ 1500 m (4921.26 ft)
Environmental Specifications
Operating Temperature
–10°C to +50°C (+14°F to +122°F)
Storage Temperature
–20°C to +65°C (–4°F to +149°F)
Operating Humidity
≤ 95% RH (no condensation)
Physical Specifications
Color
White
Dimensions (with Base)
Φ100 mm × 50 mm (Φ 3.00″ × 1.50″)
Weight (with Base)
102 g (0.22 lb)
Compliance
Compliance Standard
EN54-7
