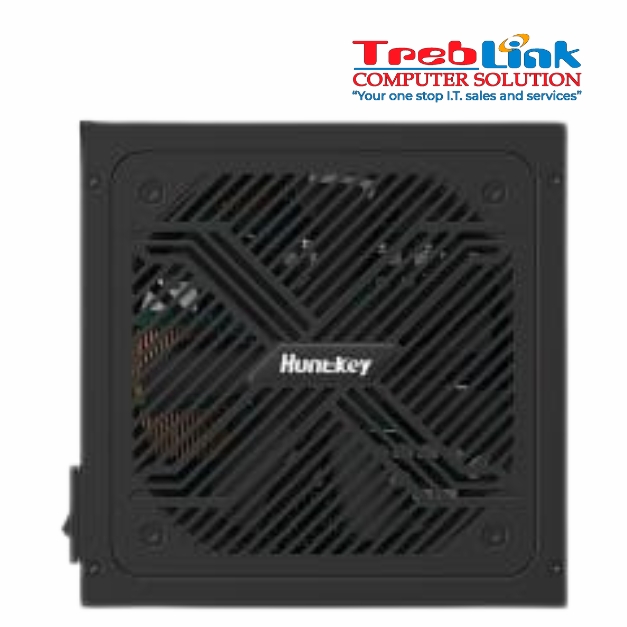

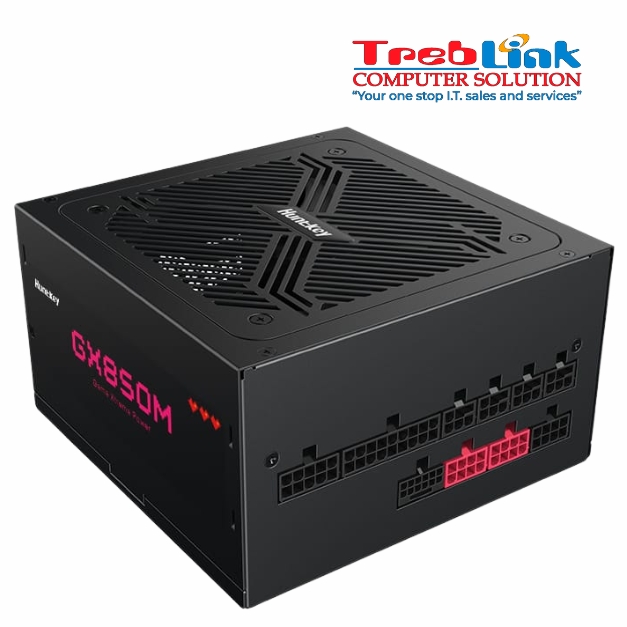

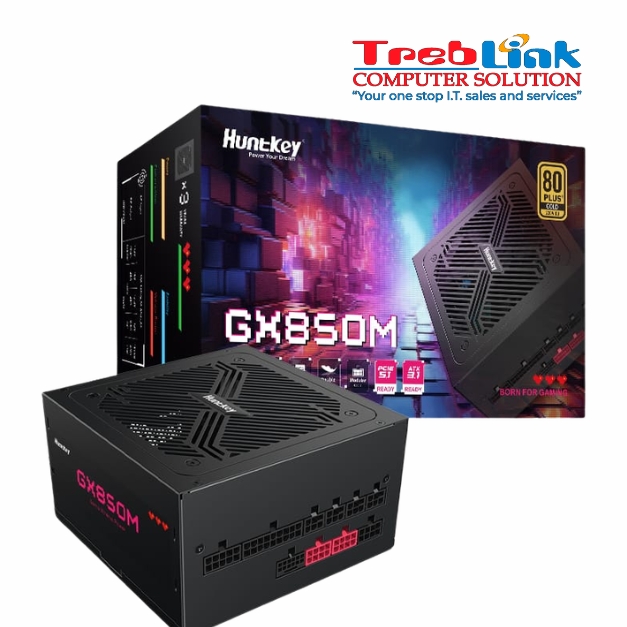

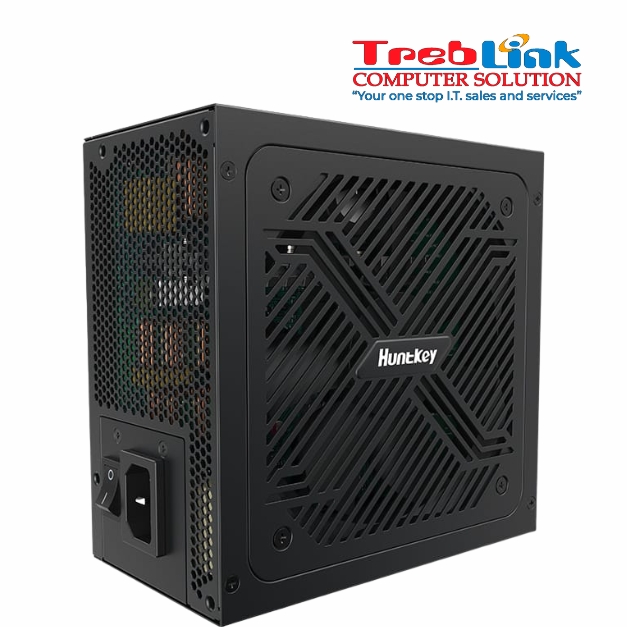

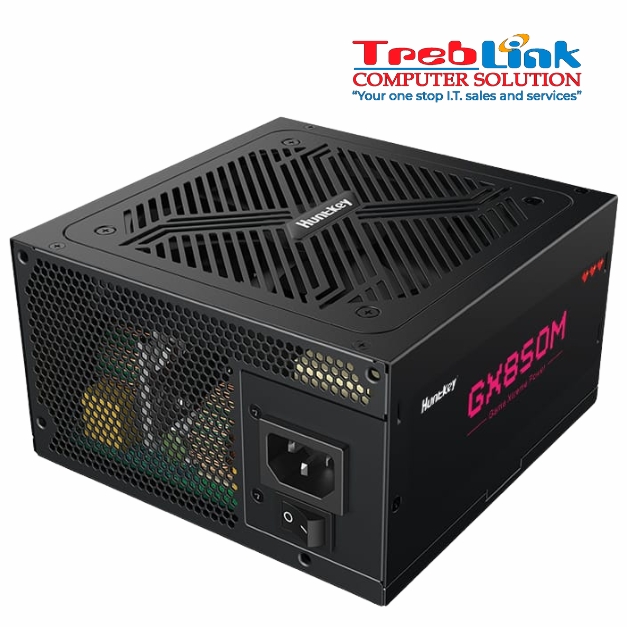

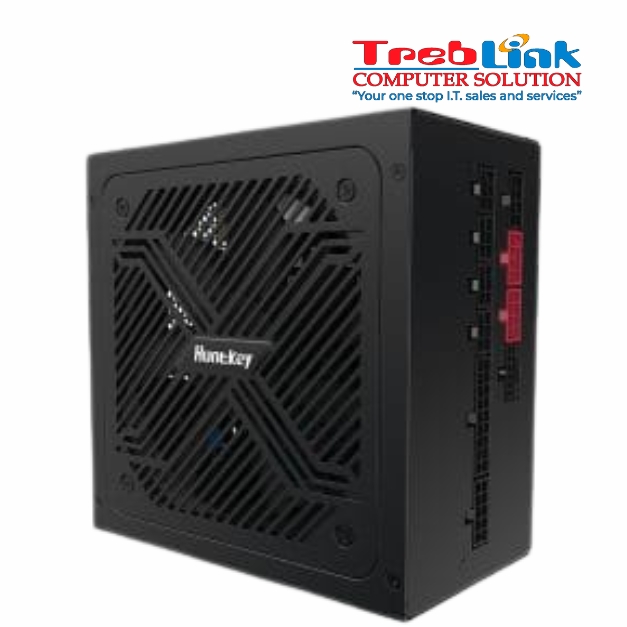

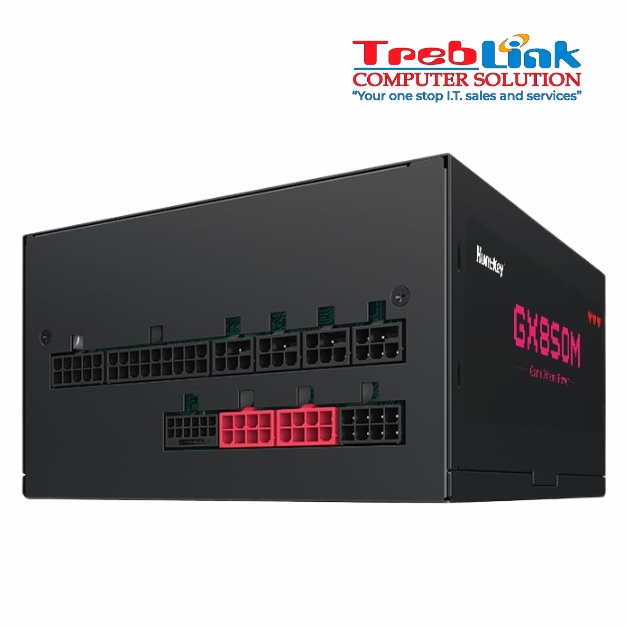

GX850M Power Supply
1.Rated power 850W, +12V power output occupy more than 99%
2.80PLUS Gold efficiency level, efficiency high up to 92%
3.Intel ATX3.1 ready, native PCIe 5.1 Power Supply
4.Mature topology structure: LLC&SR&DC-DC
5.High stabilized voltage, +12V voltage fluctuate below 1%
In Stock
Available Qty: 2
Power Supply Specifications
Model
GX850M
Rated Power
850W
Fan
12cm
Box
Colorful Box
AC Cable
AC
Energy Efficiency
80 PLUS Gold
+12V Output (Max)
70.8A
Input Voltage
150–264V AC
PFC Type
Active PFC
Topological Structure
LLC & SR & DC-DC
Housing
Black Paint
Connectors & Features
I/O Switch
Equipped
Backward Cable Support
Supported
Motherboard Connector
(20+4)-Pin
CPU Connector
1 × (4+4+4)-Pin
PCI-E Connector
1 × (6+2+6+2)-Pin
PCI-E 5.1 Connector
1 × 12V-2×6
SATA Connectors
4
PATA Connectors
3
Standards & Dimensions
Safety Standard
CCC
Other Standard
RoHS
Dimensions (L × W × H)
150 × 86 × 150mm
