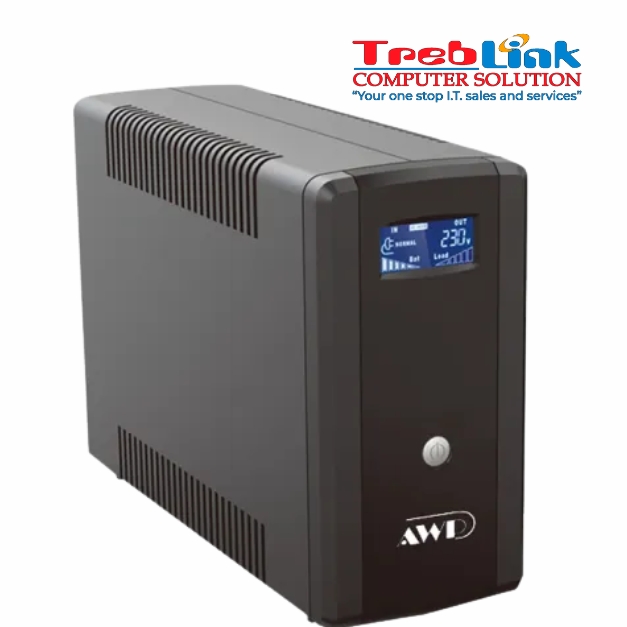

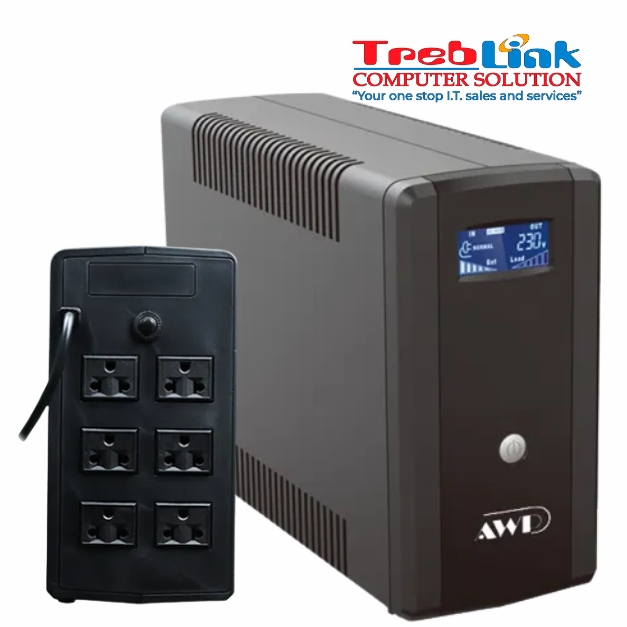

AWP AID1500 Pro Aide Pro LCD 1500VA-900W UPS with AVR Uninterruptible Power Supply (6-Sockets)
The AWP AID1500 Pro LCD is a tower-type UPS with a power rating of 1500VA / 900W, designed to provide stable and reliable power protection for various applications. It is equipped with 2 × 12V / 8Ah batteries and offers 6 universal sockets for flexible connectivity. With a compact design and dimensions of 90 × 305 × 165 mm weighing just 10.7 kg, it fits seamlessly into both home and office environments. The unit features Automatic Voltage Regulation (AVR), a microprocessor-based digital control system, and a wide input voltage range with auto-sensing frequency to ensure consistent performance. It supports LED or LCD display options, auto restart when mains power is restored, and auto phase tracking, which aligns the inverter output with the utility voltage to reduce transfer time and peak surge. Its intelligent battery management system includes temperature compensation for extended battery life and a three-stage charging system for faster recharge. For enhanced safety, the UPS provides short circuit, overcharge/overdischarge, overload, and surge protections, as well as automatic charging in OFF mode and cold start capability. Additionally, it supports optional USB and RJ45 ports and offers unattended safety shutdown with alarms and automatic power management via PC communication.
Technical Specifications
Model
AWP AID1500 Pro LCD
Ratings
1500VA / 900W
Battery
2 × 12V / 8Ah
Interface
6 × Universal Socket
Form Factor
Tower
Size (W × D × H)
90 × 305 × 165 mm
Weight
10.7 kg
Design
Compact Design
Features
Voltage Regulation
Automatic Voltage Regulation (AVR)
Display
LED Display or LCD Display (Selectable)
Control
Microprocessor-Based Digital Control
Frequency
Auto-Sensing Frequency
Input Range
Wide Input Voltage Range
Auto Restart
Auto Restart When Mains Power Is Restored
Phase Tracking
Auto-Track Mains Phase to Match Inverter Output with Utility Voltage, Reducing Transfer Time and Peak Surge
Battery Management
Intelligent Battery Management with Temperature Compensation and Three-Stage Charging
Protections
Short Circuit, Battery Overcharge/Overdischarge, Overload, and Surge Protections
Charging
Automatic Charging in OFF Mode
Cold Start
Supported
Optional Ports
USB & RJ45 (Optional)
Safety
Unattended Safety Shutdown: System Alarm and Auto Power-On/Off via USB Interface to PC
