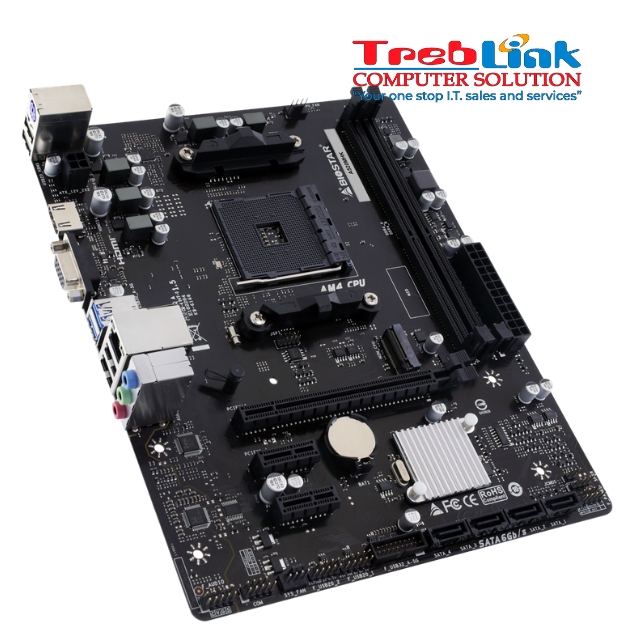

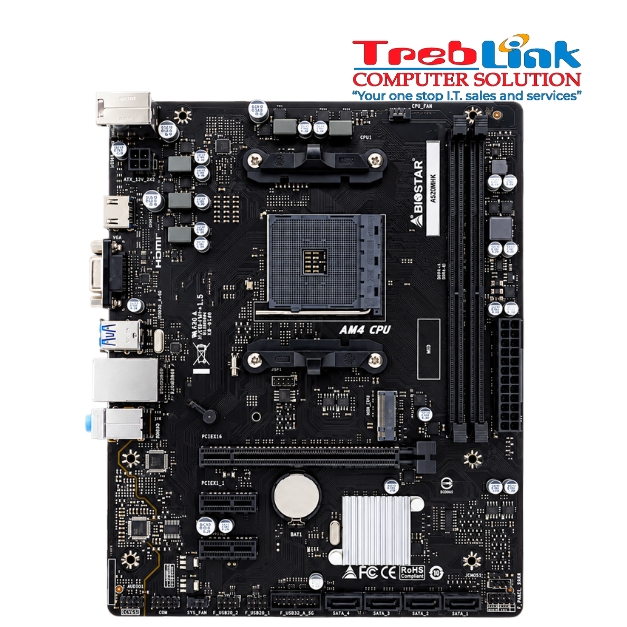

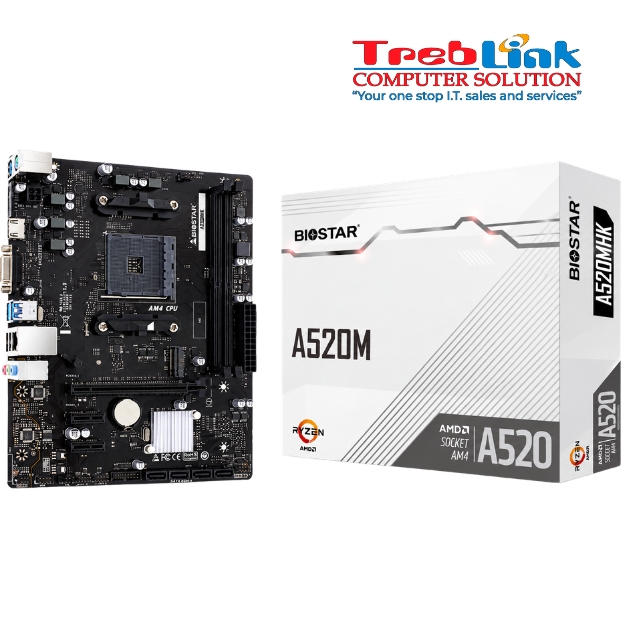

BIOSTAR A520MHK
Support AMD RyzenTM 5000/5000G/4000G/3000/3000G series Processors
AMD A520 single chip architecture
Supports 2-DIMM DDR4 up to 64 GB Memory
Supports USB 3.2 Gen1
Supports PCIe M.2
Supports HDMI® 4K resolution
In Stock
Available Qty: 1
Specifications
Chipset
AMD A520
CPU Support
Support AMD Ryzen™ 5000/5000G/4000G/3000/3000G series Processors
Support for future AMD Ryzen™ processors with BIOS update
Memory
4th Gen AMD Ryzen Processors (Vermeer CPUs): Dual Channel DDR4 –
4266+(OC)/4133(OC)/4000(OC)/3800(OC)/3600(OC)/3200/2933/2667/2400/2133
4th Gen AMD Ryzen with Radeon Graphics Processors (Cezanne APUs):
Dual Channel DDR4 – 4400+(OC)/4266(OC)/4133(OC)/4000(OC)/3800(OC)/3600(OC)/3200/2933/2667/2400/2133
3rd Gen AMD Ryzen Processors (Matisse CPUs): Dual Channel DDR4 –
4266+(OC)/4133(OC)/4000(OC)/3800(OC)/3600(OC)/3200/2933/2667/2400/2133
3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs):
Dual Channel DDR4 – 4400+(OC)/4266(OC)/4133(OC)/4000(OC)/3800(OC)/3600(OC)/3200/2933/2667/2400/2133
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 8/16/32 GB DDR4 module
Integrated Video
Integrated Video
By CPU model
DirectX
Supports DX12
HDCP
Supports HDCP
Storage
M.2 Socket
1 x M.2 (M Key) Socket
M.2 Support
Supports M.2 Type 2260/2280 SSD module
NVMe / AHCI
PCIe 3.0 x4 (32Gb/s)
M.2 SATA Support
Supports SATA III (6.0Gb/s) SSD
SATA III
4 x SATA III Connector (6Gb/s)
RAID Support
AHCI & RAID 0, 1, 10
LAN
LAN Controller
Realtek RTL8111H
LAN Speed
10/100/1000 Mb/s auto negotiation
Duplex
Half / Full duplex capability
Audio
Audio Codec
Realtek ALC897
Audio Channels
7.1 Channels
Audio Type
High Definition Audio, Hi-Fi (Front)
USB
USB 3.2 (Gen1)
4 x USB 3.2 (Gen1) ports
(2 on rear I/Os and 2 via internal headers)
USB 2.0
8 x USB 2.0 ports
(4 on rear I/Os and 4 via internal headers)
Expansion Slot
AMD Ryzen 5000/3000 Processors
1 x PCIe 3.0 x16 Slot (x16 or x4/x4/x4/x4 mode)
AMD Ryzen 5000G/4000G/3000G Processors
1 x PCIe 3.0 x16 Slot (x16 or x8/x4/x4 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1 Slot

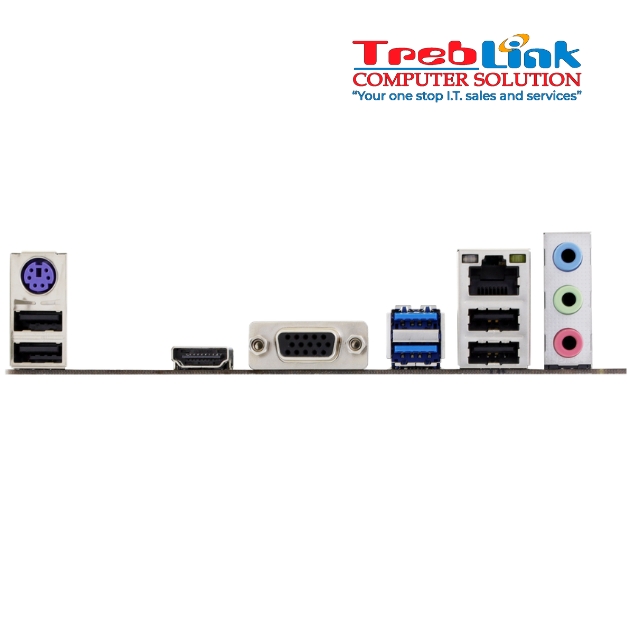

Rear I/O
PS/2
1 x PS/2 Keyboard/Mouse
VGA
1 x VGA Port
HDMI
1 x HDMI® Port
LAN
1 x LAN Port
USB 3.2
2 x USB 3.2 (Gen1) Ports
USB 2.0
4 x USB 2.0 Ports
Audio
3 x Audio Jack
Internal I/O
SATA
4 x SATA III 6.0Gb/s Connector
USB 3.2 Header
1 x USB 3.2 (Gen1) Header
(each header supports 2 USB 3.2 (Gen1) ports)
USB 2.0 Header
2 x USB 2.0 Header
(each header supports 2 USB 2.0 ports)
Power Connector
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
Fan Connector
1 x CPU Fan Connector
1 x System Fan Connector
Front Panel
1 x Front Panel Header
Front Audio
1 x Front Audio Header
Clear CMOS
1 x Clear CMOS Header
COM Serial
1 x COM Serial Header
Speaker
1 x Speaker Header
Dimension
Form Factor
Micro ATX
Dimension
19.0 cm × 23.5 cm (W × L)
OS Support
Operating System
Windows 10 (64-bit) / Windows 11 (64-bit)
Accessories
SATA Cable
2 x SATA Cable
I/O Shield
1 x I/O Shield
