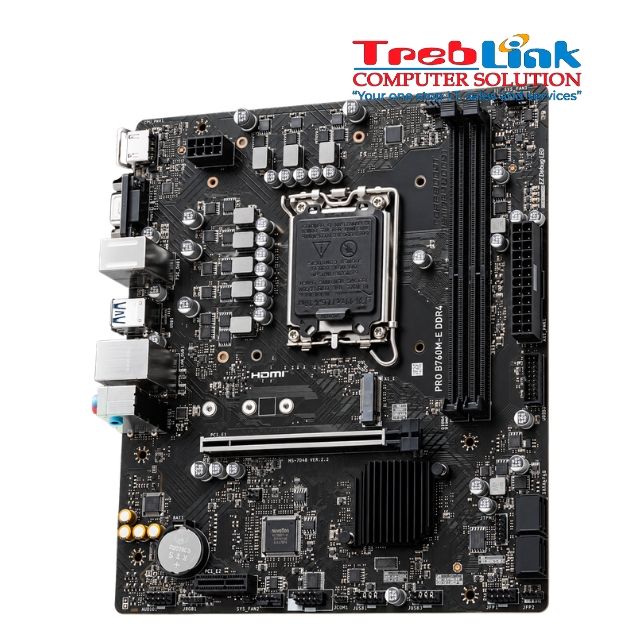

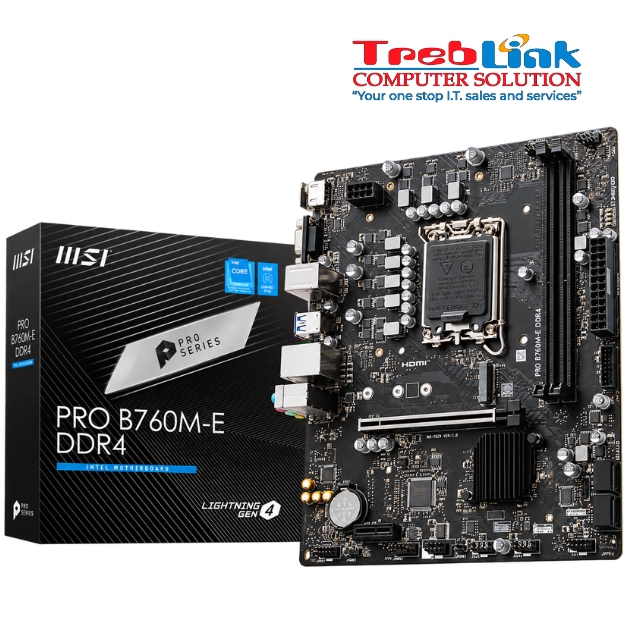

MSI Pro B760M-E DDR4 Motherboard
PRO B760M-E DDR4
– Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
– Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
– Core Boost : With premium layout and digital power design to support more cores and provide better performance
– Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and – compatibility
– Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
– AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
– Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
In Stock
Available Qty: 2
Specifications
Chipset
Intel B760
CPU Support
Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
Memory
2 x DDR4, Maximum Memory Capacity 64GB
Memory Support: 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4200(OC) /
4000(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) /
3333(OC) / 3200(JEDEC) / 2933(JEDEC) / 2666(JEDEC) / 2400(JEDEC) / 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 4800+ MHz
• 1DPC 2R Max speed up to 4600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Onboard Graphics
Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz,
1920×1200 60Hz
1 x HDMI™
1 x VGA
* Available only on processors featuring integrated graphics.
Graphics specifications may vary depending on the CPU installed.
Expansion Slot
1 x PCI-E x16 slot
1 x PCI-E x1 slot
PCI_E1: PCIe 4.0 supports up to x16 (From CPU)
PCI_E2: PCIe 3.0 supports up to x1 (From Chipset)
Storage
1 x M.2 slot
M.2_1 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode,
supports 2280 / 2260 / 2242 devices
4 x SATA 6G ports
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
4 x USB 2.0 (Rear)
4 x USB 2.0 (Front)
2 x USB 3.2 Gen1 Type-A (Rear)
2 x USB 3.2 Gen1 Type-A (Front)
LAN
Realtek® RTL8111H Gigabit LAN
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Internal I/O
1 x Power Connector (ATX_PWR)
1 x Power Connector (CPU_PWR)
1 x CPU Fan
2 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Com Port (JCOM)
1 x RGB LED connector (JRGB)
1 x TPM pin header (Support TPM 2.0)
2 x USB 2.0
1 x USB 3.2 Gen1 Type-A
LED Feature
4 x EZ Debug LED
Back Panel Ports
HDMI™
VGA
Keyboard / Mouse
USB 3.2 Gen 1 5Gbps (Type-A)
LAN port
Audio Connectors
USB 2.0
USB 2.0
Operating System
Support for Windows® 11 64-bit
Support for Windows® 10 64-bit
PCB Dimension
mATX
200mm x 236.16mm
