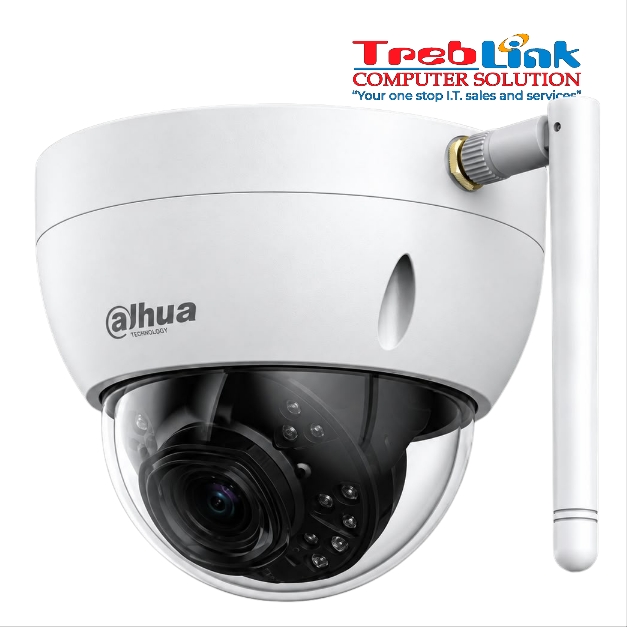

IPC-HDBW1235E-W-S2 2MP IR Dome WI-FI Camera

Image Sensor

1/2.7” 2Megapixel progressive CMOS

Max. Resolution

1920 (H) × 1080 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Minimum Illumination

Manual 1/30 s:
1.9231 Lux @F2.0 (Color, 80 IRE)
1.0843 Lux @F2.0 (W/B, 80 IRE)
0 Lux (IR on)

Manual 1/3 s:
0.1970 Lux @F2.0 (Color, 80 IRE)
0.1168 Lux @F2.0 (W/B, 80 IRE)
0 Lux (IR on)

S/N Ratio

>49.85 dB

Illumination Distance

30 m (98.4 ft)

Illuminator On/Off Control

Auto

Illuminator Number

18 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–355°

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm / 3.6 mm

Max. Aperture

F2.0

Field of View

2.8 mm:
Horizontal: 113°
Vertical: 58°
Diagonal: 135°

3.6 mm:
Horizontal: 93°
Vertical: 48°
Diagonal: 114°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 0.5 m (1.6 ft)
3.6 mm: 0.7 m (2.3 ft)

2.8 mm Lens

Detect: 37.3 m (122.4 ft)
Observe: 14.9 m (48.9 ft)
Recognize: 7.5 m (24.6 ft)
Identify: 3.7 m (12.1 ft)

3.6 mm Lens

Detect: 51.1 m (167.7 ft)
Observe: 20.4 m (66.9 ft)
Recognize: 10.2 m (33.5 ft)
Identify: 5.1 m (16.7 ft)

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG

Smart Codec

H.264: Yes
H.265: Yes

Video Frame Rate

50 Hz
Main stream (1920 × 1080 @25 fps)
Sub stream (640 × 480 @25 fps)

60 Hz
Main stream (1920 × 1080 @30 fps)
Sub stream (640 × 480 @30 fps)

Stream Capability

2 streams

Resolution

1080p (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); VGA (640 × 480); QVGA (320 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 24 kbps–8192 kbps
H.265: 9 kbps–5632 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

DWDR

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Supports 90°/270° with all resolutions)

Mirror

Yes

Privacy Masking

4 areas

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; voltage detection; motion detection; video tampering

Network Interface

RJ-45 (10/100 Base-T)

Wi-Fi

Yes

SDK and API

Yes

Protocol

HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; IPv4/v6; QoS; NTP

Interoperability

ONVIF (Profile T/Profile S/Profile G); CGI; DMSS

User/Host

20 (Total bandwidth: 20 M)

Storage

FTP; SFTP; Micro SD card (256 G); NAS

Browser

IE: IE9, IE11 and later
Chrome: 39.0.2171.95 and later versions without plug-in (62.0.3202.94)
Firefox: 43.0.1 and later versions without plug-in (69.0.3)

Management Software

DMSS

Mobile Phone

iOS; Android

Certification

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
CE-RED: Radio Equipment Directive 2014/53/EU
FCC: 47 CFR FCC Part 15, Subpart B
FCC ID: FCC Part 15C

Power Supply

12V DC

Power Consumption

Max. 4.7 W (12V DC, IR full intensity)

Operating Conditions

–30°C to +50°C (–22°F to +122°F) / Less than 95% RH

Storage Conditions

–40°C to +60°C (–40°F to +140°F)

Protection Grade

IP67; IK10

Casing

Metal

Dimensions

146.2 mm × 110.7 mm × 90.6 mm (5.8″ × 4.4″ × 3.6″) (L × W × H)

Net Weight

408 g (0.9 lb)

Gross Weight

729 g (1.6 lb)
