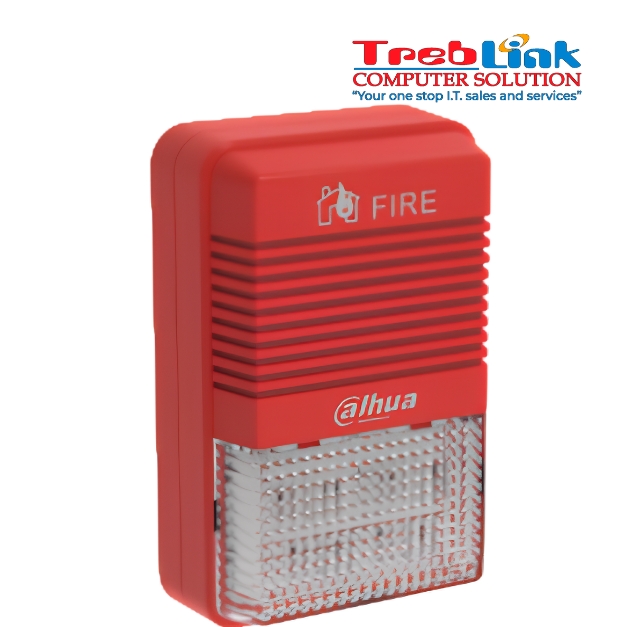

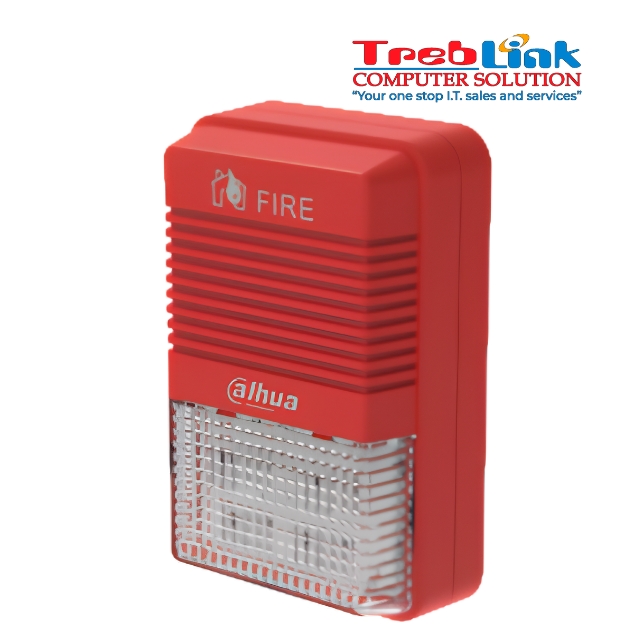

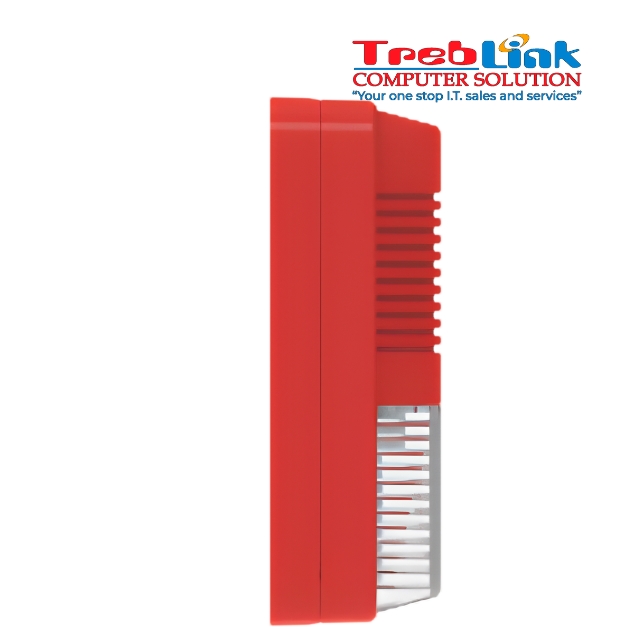

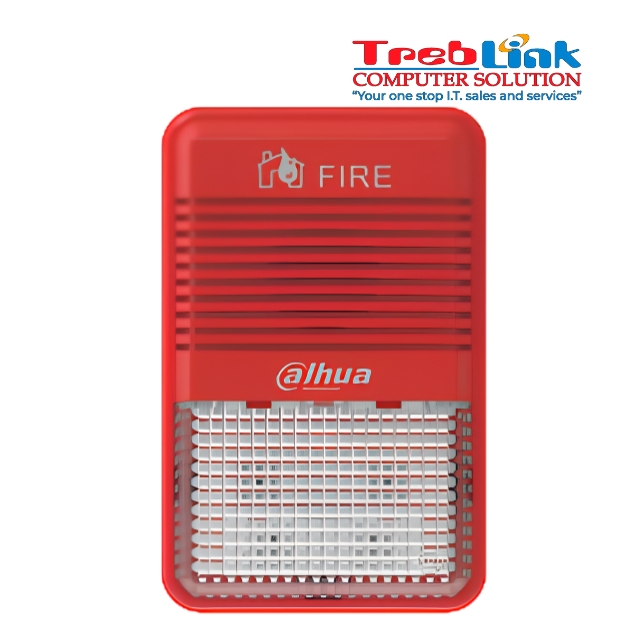

HY-1500
Sounder&Strobe with Base
In Stock
Available Qty: 2
Technical Specifications
Working Voltage
DC 24V
Working Current
Monitoring Current: ≤ 270μA
Maximum Operating Current: ≤ 7mA
Wiring
Two-wire, polarity-free
Addressing Method
Electrical Encoder
Address Range
1–254
Alarm Volume
75 dB–115 dB @ 3 m (A)
Modulation Cycle
4 s–5 s
Flash Rate
1.5 Hz–2.0 Hz
Communication Distance
1500 m (4921.26 ft)
Environmental Specifications
Operating Temperature
–10°C to +55°C (+14°F to +131°F)
Storage Temperature
–20°C to +65°C (–4°F to +149°F)
Operating Humidity
≤ 95% RH (no condensation)
Physical Specifications
Color
Shell: Red
Lampshade: Clear White
Dimensions
125 mm × 80 mm × 40 mm (4.92″ × 3.15″ × 1.57″)
Weight (with Base)
118 g (0.26 lb)
Compliance
Compliance Standard
EN54-3, EN54-23
