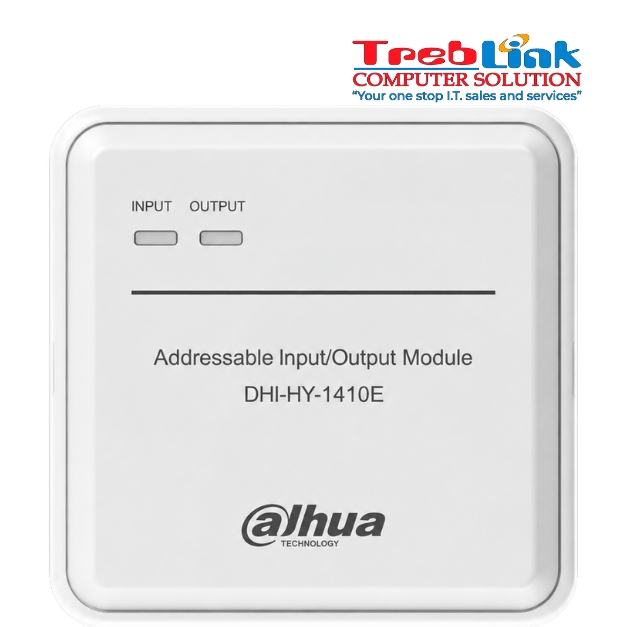

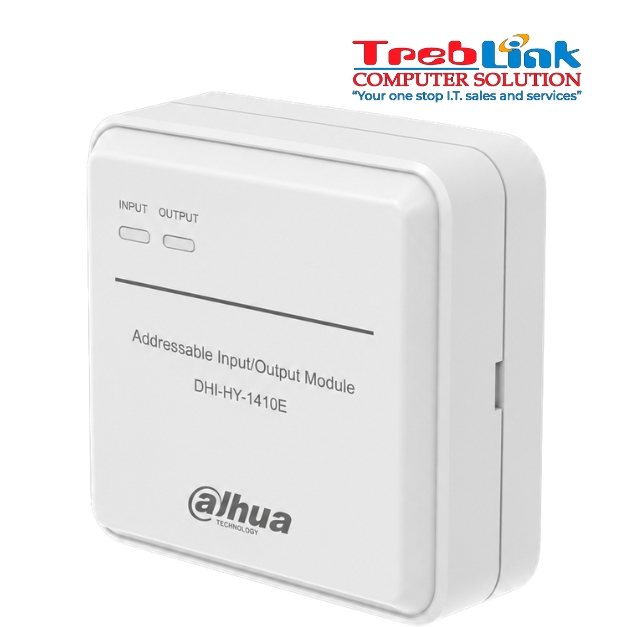

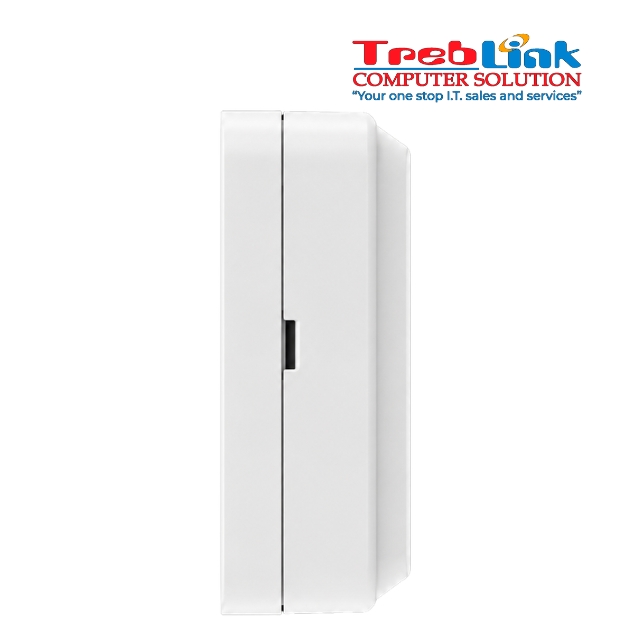

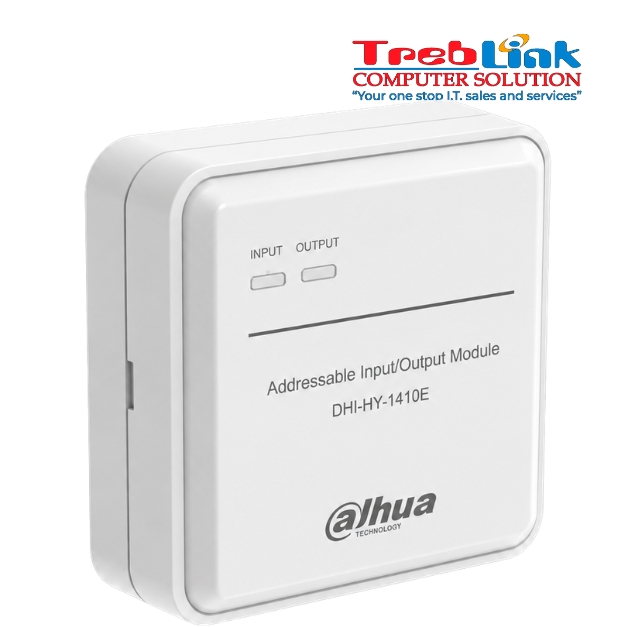

HY-1410E Addressable Input/Output Module

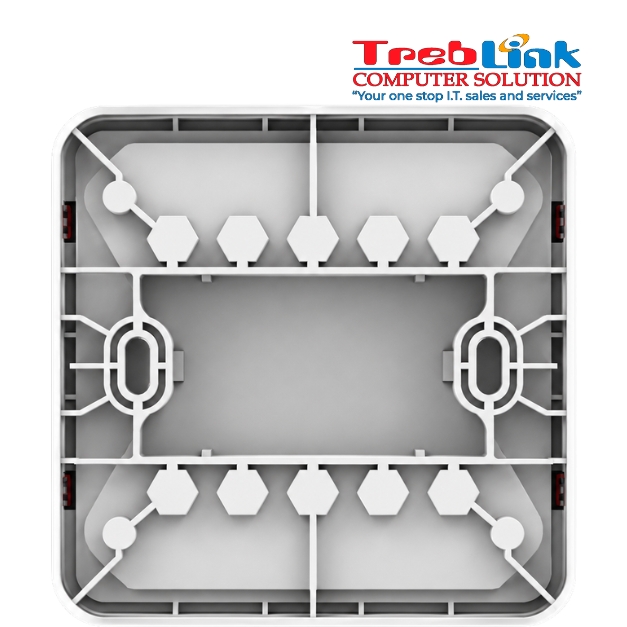

module with base
In Stock
Available Qty: 1
Electrical Specifications
Working Voltage
24V DC
Current
Monitoring Current: ≤ 150μA
Operating Current: ≤ 45mA
Output Contact Capacity
DC 24V / 40mA
Indicator
Input Indicator: Red LED flashes once every 6 seconds;
flashes once every 2 seconds when malfunctioned and
remains lit after receiving feedback.
Output Indicator: Red LED remains off during normal operation,
flashes once every 2 seconds when malfunctioned and
remains lit after receiving a start signal.
Communication
Wiring
Two-wire, polarity-free
Addressing Method
Electrical Encoder
Address Range
1–254
Communication Distance
≤ 1500 m
Environmental Specifications
Operating Temperature
–10°C to +55°C (+14°F to +131°F)
Storage Temperature
–20°C to +65°C (–4°F to +149°F)
Operating Humidity
≤ 95% RH (no condensation)
Physical Specifications
Color
White
Dimensions (with Base)
90 mm × 90 mm × 37 mm (2.7″ × 2.7″ × 1.11″)
Weight (with Base)
95 g (0.21 lb)
Certifications
Certification
CE
