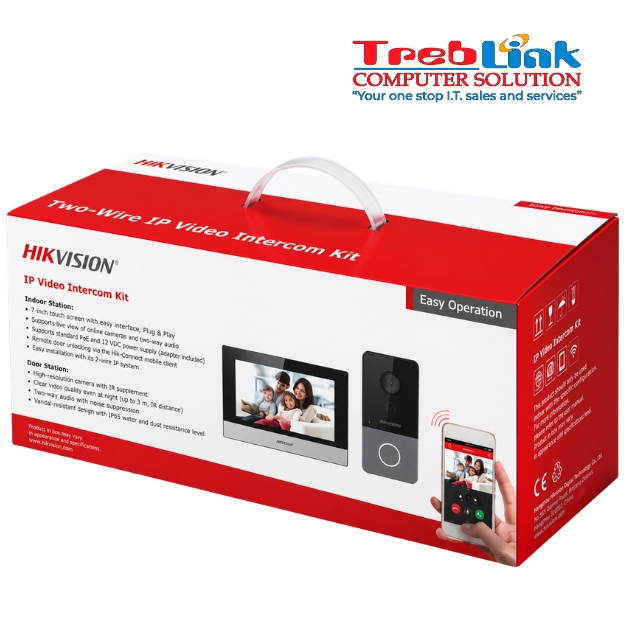

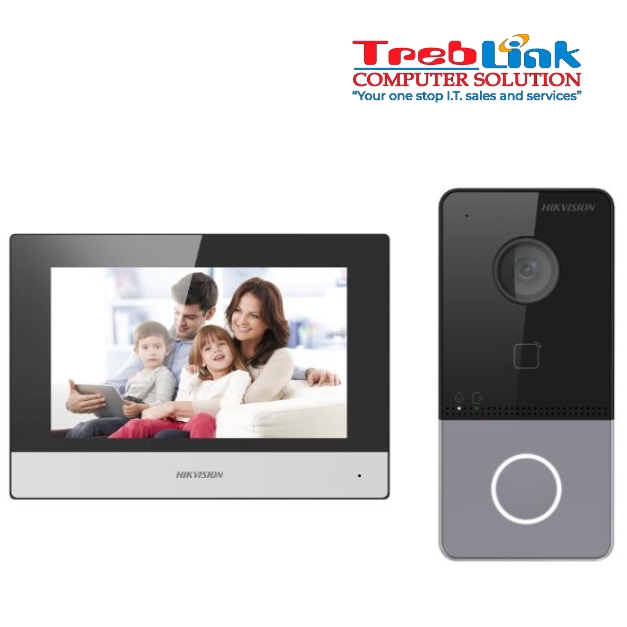

DS-KIS603-P(C) Discontinued IP Video Intercom Kit
IP video intercom for villa or house
One call button for easier calls
Convenient Hik-Connect APP Mobile Control
Including: DS-KV6113-WPE1(C) x1, DS-KH6320-WTE1 x1, DSKABV6113-RS × 1, Administrator card x 1, Key fob x 5, PSU x2
In Stock
Available Qty: 2
Model Information
Model
DS-KIS603-P(C)
Product Name
IP Video Intercom Kit
Product Type
IP Video Intercom Kit
Status
Discontinued
Door Station – System Parameters
Operating System
Embedded Linux operation system
Flash
32 MB
RAM
256 MB
Door Station – Video Parameters
Camera
2 MP HD camera
Night Vision
Low illumination IR supplement mode: 3 m
Backlight Compensation
Support
Digital Noise Reduction
Support
Wide Dynamic Range (WDR)
True WDR
Field of View
Horizontal: 131° / Vertical: 78°
Video Compression Standard
H.264, H.265, MJPEG
Video Stream
Main stream: 1080p @ 25 fps, 720p @ 25 fps. Sub stream: 720p @ 25 fps, 480p @ 25 fps.
Motion Detection
Support
Flash-Avoidance Frequency
50 Hz, 60 Hz
Door Station – Audio Parameters
Audio Input
Built-in omnidirectional microphone
Audio Output
Built-in loudspeaker
Audio Quality
Noise suppression and echo cancellation
Audio Compression Standard
G711U, G711A, G726, AAC_LC, AAC_LD, OPUS, G722.1
Audio Compression Rate
64 Kbps
Door Station – Network Parameters
Network Protocol
TCP/IP, RTSP, IPv6, ONVIF
Wired Network
10/100 Mbps Ethernet
Door Station – Device Interfaces
RS-485
1
Alarm Input
4
Debugging Port
1
Tamper Switch
1
Door Station – General
Power Consumption
Less than 10 W
Working Temperature
-40°C to 53°C (-40°F to 127.4°F)
Working Humidity
10% to 95%
Dimensions
138 mm × 65 mm × 27 mm
Installation
Surface mounting
Protection Level
IP65
Indicator
2
Power Supply
IEEE 802.3af standard PoE, 12 VDC
Indoor Station – System Parameters
Operating System
Embedded Linux operation system
Memory
128 MB
Flash
32 MB
Indoor Station – Display Parameters
Display Screen
7-inch colorful TFT screen
Display Resolution
1024 × 600
Operation Method
Capacitive touch screen
Indoor Station – Audio Parameters
Audio Input
Built-in omnidirectional microphone
Audio Output
Built-in loudspeaker
Audio Quality
Noise suppression and echo cancellation
Audio Compression Standard
G.711 U
Audio Compression Rate
64 Kbps
Indoor Station – Network Parameters
Wired Network
10/100 Mbps self-adaptive
Wireless Network
Wi-Fi 802.11 b/g/n
Network Protocol
TCP/IP, SIP, RTSP
RS-485 / Network Interface
1 RS-485; RJ-45 10/100 Mbps self-adaptive
Indoor Station – Device Interfaces
RS-485
1
Alarm Input
8-channel alarm inputs
Relay Output
2
TF Card
Up to 32 GB, SD 2.0 or lower version
Indoor Station – General
Power Consumption
≤ 6 W
Working Temperature
-10°C to 55°C (14°F to 131°F)
Working Humidity
10% to 90%
Dimensions (L × W × H)
200 mm × 140 mm × 15.1 mm (7.9″ × 5.5″ × 0.6″)
