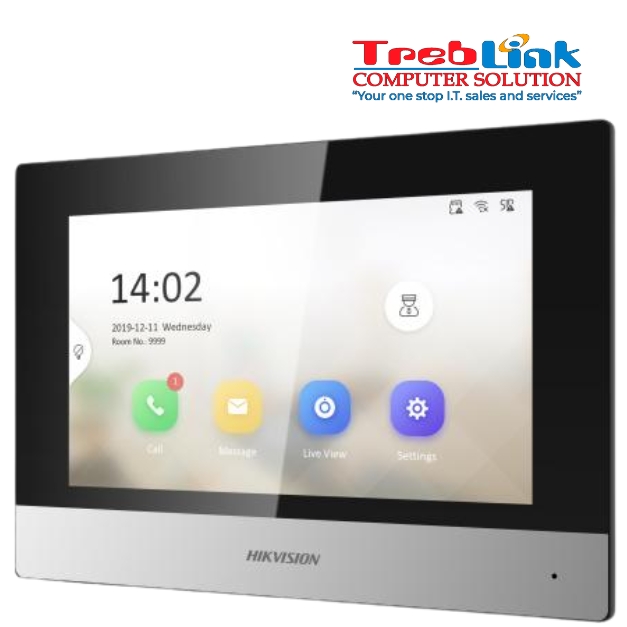

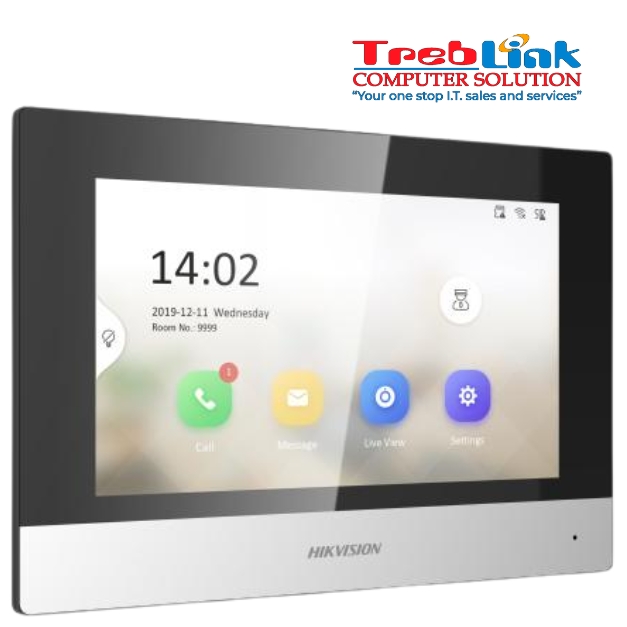

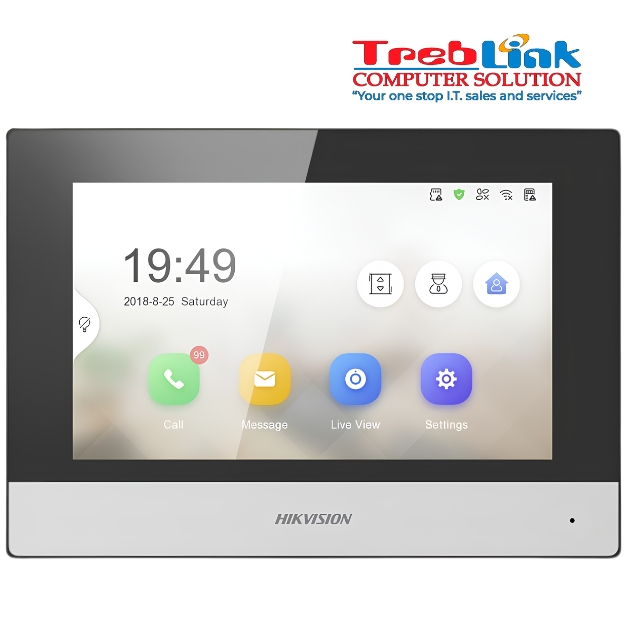

DS-KH6320-WTE1 KH6 Series IP-Based Indoor Station
7-inch TFT touch screen with 1024 × 600 resolution
Convenient Hik-Connect APP Mobile Control
Receive calls, open the door and live view remotely
Easy to use without PC
Easy wizard for quick set up
Configure the whole system on one touch screen
Live view of the door station and cameras in public areas
Support voice messages when no response from the indoor station
Receive alarms by linkage with a alarm system and notify the center to handle in time
Elevator access control
In Stock
Available Qty: 2
Model Information
Model
DS-KH6320-WTE1
Product Name
KH6 Series IP-Based Indoor Station
Product Type
IP Video Intercom Indoor Station
Status
Discontinued
System Parameters
Operating System
Linux
ROM
32 MB
RAM
128 MB
Processor
Embedded high-performance processor
Display Parameters
Screen Size
7-inch
Operation Method
Capacitive touch screen
Display Type
Colorful TFT
Resolution
1024 × 600
Video Parameters
Lens
/
Resolution
/
Field of View (FOV)
/
Wide Dynamic Range (WDR)
/
Video Compression Standard
/
Focal Length
/
Audio Parameters
Audio Input
1 built-in omnidirectional microphone
Audio Compression Standard
G.711 U, G.711 A, G.722.1
Audio Output
1 built-in loudspeaker
Audio Compression Bitrate
64 Kbps
Audio Quality
Noise suppression and echo cancellation
Volume Adjustment
Adjustable
Capacity
Message Capacity
With TF card inserted: 200 captured pictures and 200 alarm records. Without TF card: 2 MB RAM for picture storage; storage capacity depends on picture size, with 200 alarm records.
Notice Capacity
200
Linked Indoor Extensions Capacity
16
Linked Doorphone Capacity
17
Linked Network Camera Capacity
16
Network Parameters
Network Protocol
TCP/IP, SIP, RTSP
Wi-Fi
2.4 GHz, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Bluetooth
/
3G/4G
/
Zigbee
/
Device Interfaces
Alarm Input
8
Network Interface
1 RJ-45, 10/100 Mbps self-adaptive
Tamper
/
RS-485
1 RS-485 (Half duplex)
USB
/
TF Card
Supports TF card up to 128 GB
Alarm Output
2 relays, maximum 30 VDC, 0.3 A
General
Button
/
Installation
Surface mounting
Indicator
/
Net Weight
355 g (0.8 lb)
Gross Weight
683 g (1.5 lb)
Protective Level
/
Working Temperature
-10 °C to 50 °C (14 °F to 122 °F)
Working Humidity
10% to 90% (non-condensing)
Dimensions (W × H × D)
200 mm × 140 mm × 15.1 mm (7.9″ × 5.5″ × 0.6″)
Battery
/
Application Environment
Indoor
Power Consumption
≤ 5 W
