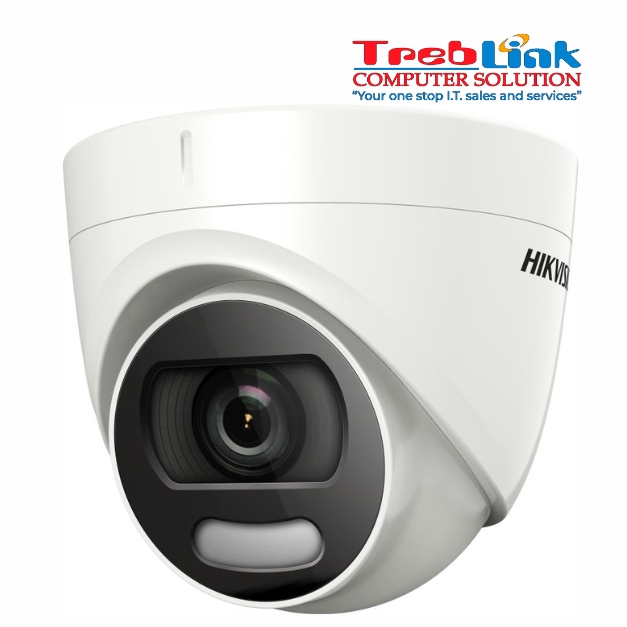

DS-2CE72HFT-F28 5 MP ColorVu Fixed Turret Camera
5 MP full time color turret camera
24/7 full color imaging
2.8 mm fixed focal lens
Warm supplemental light with 20 m range
Clear imaging even against strong back lighting due to 130 dB true WDR technology
3D DNR technology delivers clean and sharp images
Water and dust resistant (IP67)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).
In Stock
Available Qty: 10
Model Information
Product Type
5MP Smart Light Analog CCTV Camera
Camera Technology
TVI / AHD / CVI / CVBS
Signal System
PAL / NTSC
Camera
Image Sensor
5MP CMOS
Maximum Resolution
2560 (H) × 1944 (V)
Minimum Illumination
0.0005 Lux @ F1.0 (AGC ON), 0 Lux with White Light
Shutter Time
PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day & Night
Color
Angle Adjustment
Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
Lens
Lens Type
2.8 mm Fixed Lens
Focal Length
2.8 mm
Horizontal Field of View
99.7°
Vertical Field of View
72°
Diagonal Field of View
139.8°
Lens Mount
M16
Illuminator
Supplement Light Type
White Light
Supplement Light Range
Up to 20 m
Night Vision
Color Night Vision with White Light
Smart Light
Supported
Image Parameters Switch
STD / HIGH-SAT
Image Settings
Brightness, Sharpness, Mirror, Smart Light, AGC
Wide Dynamic Range (WDR)
≥130 dB
Image Enhancement
BLC, HLC
White Balance
Auto / Manual
Day/Night Mode
Color
Frame Rate
TVI
5MP @ 20fps, 4MP @ 30fps, 4MP @ 25fps, 1080p @ 30fps, 1080p @ 25fps
CVI
4MP @ 30fps, 4MP @ 25fps
AHD
5MP @ 20fps, 4MP @ 30fps, 4MP @ 25fps
CVBS
PAL / NTSC
Interface
Video Output
Switchable TVI / AHD / CVI / CVBS
Communication Protocol
HIKVISION-C
Language
English
General
Material
Main Body: Metal; Enclosure: Plastic
Dimensions
Φ 109.82 mm × 85.56 mm (4.32″ × 3.37″)
Weight
Approximately 350 g (0.77 lb.)
Operating Temperature
-40°C to 60°C (-40°F to 140°F)
Operating Humidity
90% or Less, Non-Condensing
Power
Power Supply
12 VDC ± 25%
Maximum Power Consumption
3.5 W
Power Adapter Recommendation
Use one power adapter per camera
Protection
Ingress Protection
IP67
Installation
Indoor / Outdoor
