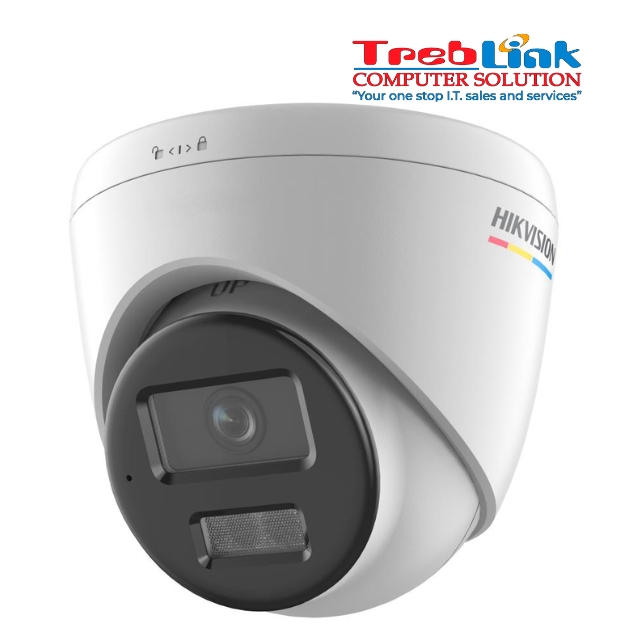

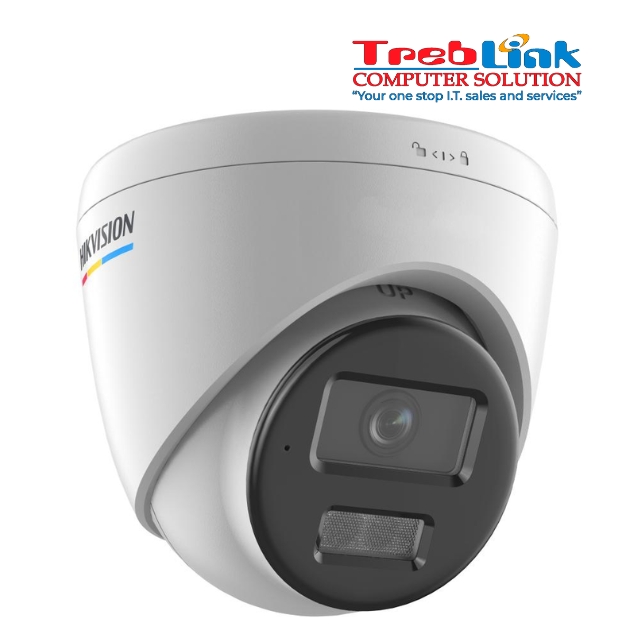

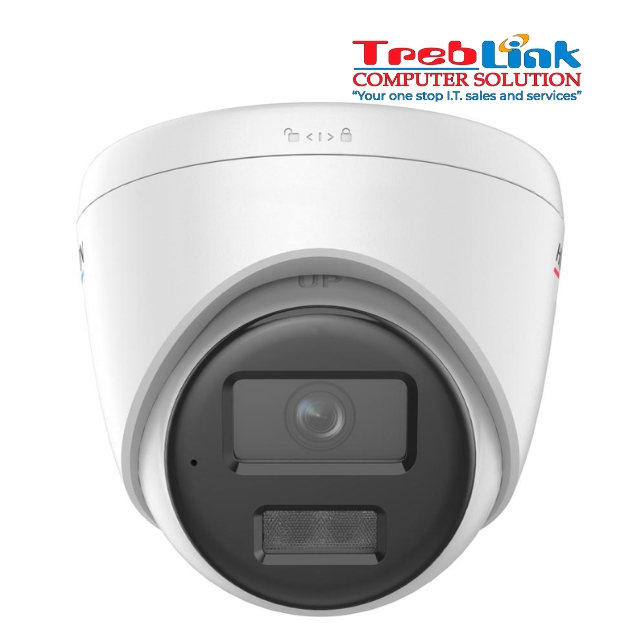

DS-2CD1347G3-LIUF (/SX) AcuSeek 4 MP ColorVu 3.0 Fixed Turret Network Camera
₱4,429.29
HikAI-ISP for excellent noise reduction effect
Super clear 24/7 colorful imaging with ColorVu 3.0 technology
Motion Detection 3.0, more accurate on person and vehicle classification
-SL/-SRB: Strobe Light & Audio Alarm to deter intruders
-SL/-SRB: Two-Way Audio via camera and Hik-Connect
Smart Hybrid Light: integrates IR and white lights, 3 supplemental lighting modes
-F: Support on-board storage up to 512 GB (SD card slot)
Water and dust resistant (IP67)
In Stock
Available Qty: 50
50 in stock
Camera
Image Sensor
1/3″ Progressive Scan CMOS
Max. Resolution
2560 × 1440
Min. Illumination
Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Time
1 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 101.5°, vertical FOV 54.6°, diagonal FOV 122.1°; 4 mm, horizontal FOV 84.1°, vertical FOV 45.6°, diagonal FOV 99.1°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.0
Depth of Field
2.8 mm: 1.7 m to ∞; 4 mm: 1.6 m to ∞
Pixel Density
DORI
2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m; 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
Illuminator
Supplement Light Type
IR, White Light
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 24 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile, Main Profile, High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR, VBR
Region of Interest (ROI)
1 fixed region for main stream and sub-stream
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Audio
Audio Type
Mono sound
Audio Compression
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
Audio Bit Rate
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)/8 to 160 Kbps (MP3)
Audio Sampling Rate
8 kHz/16 kHz
Environment Noise Filtering
Yes
Network
Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP
Simultaneous Live View
Up to 6 channels
API
ONVIF (Profile S, Profile G), ISAPI, SDK
Security
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
User/Host
Up to 32 users; 3 user levels: administrator, operator, and user
Client
iVMS-4200; Hik-Connect
Web Browser
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night Switch
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
120 dB
SNR
≥ 52 dB
Image Enhancement
BLC, HLC, 3D DNR
Privacy Mask
4 programmable rectangular privacy masks
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
-LIU, -LIU/S(L)(RB): NA; -LIUF, -LIUF/S(L)(RB): Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone
Yes, 1 built-in microphone
Built-in Speaker
-LIU, -LIUF: NA; -LIU/S(L)(RB), -LIUF/S(L)(RB): Max. power consumption: 2 W, max. sound pressure level: 10 cm: 101 dB
Audio
NA
Alarm
NA
Reset Key
-LIU, -LIU/S(L)(RB): NA; -LIUF, -LIUF/S(L)(RB): YES
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Linkage
Upload to FTP, notify surveillance center, send email, trigger recording, trigger capture
General
Power
-LIU/-LIUF: 12 VDC ± 25%, 0.52 A, max. 6.2 W, Ø5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 7.5 W. -LIU/S(L)(RB), -LIUF/S(L)(RB): 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 7.8 W
Material
Cover: Plastic, main body: Metal
Dimension
Ø110 mm × 102.7 mm (Ø4.33″ × 4.04″)
Package Dimension
150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
Weight
-LIUF: Approx. 380 g (0.8 lb.)
With Package Weight
-LIU: Approx. 550 g (1.2 lb.); -LIUF: Approx. 575 g (1.3 lb.); -LIU/S(L)(RB): Approx. 590 g (1.3 lb.); -LIUF/S(L)(RB): Approx. 600 g (1.3 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
English, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German
General Function
Heartbeat, mirror, flash log, password reset via email, password protection, anti-banding
Flashing Light
-LIU, -LIUF: NA; -LIU(F)/SL: White Light; -LIU(F)/SRB: Red and Blue Light
Approval
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Safety
CB: IEC 62368-1:2014+A11; CE-LVD: EN 62368-1:2014/A11:2017
Environment
CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
Protection
IP67: IEC 60529-2013
