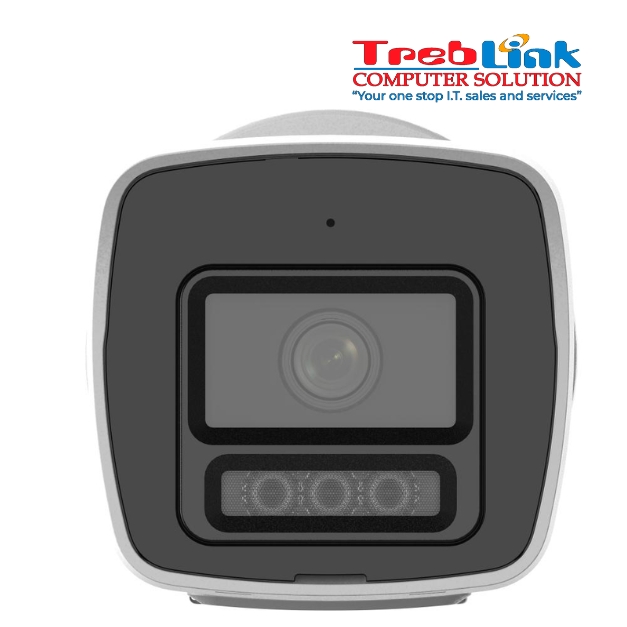

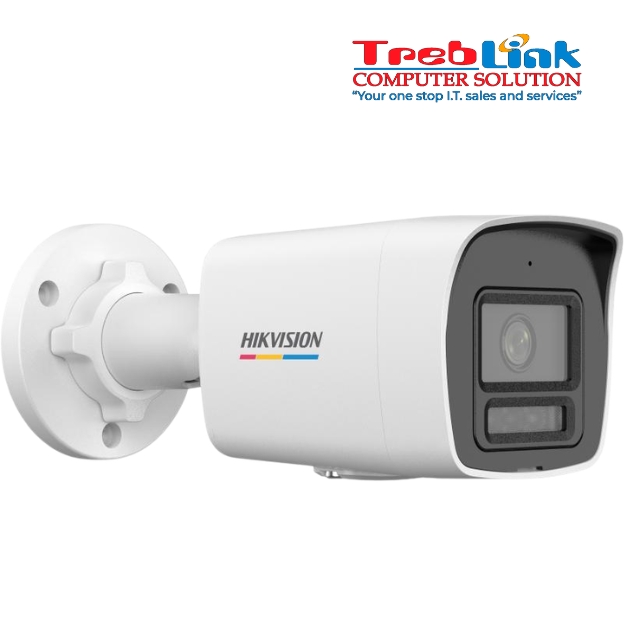

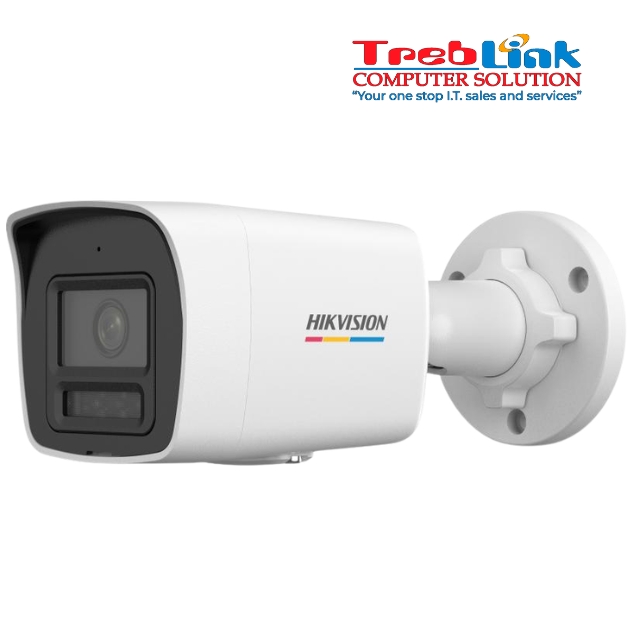

DS-2CD1047G3H-LIU (/SX) AcuSeek 4 MP ColorVu 3.0 Fixed Bullet Network Camera
₱5,651.07
HikAI-ISP for excellent noise reduction effect
Super clear 24/7 colorful imaging with ColorVu 3.0 technology
Motion Detection 3.0, more accurate on person and vehicle classification
Built-in Mic
Smart Hybrid Light: integrates IR and white lights, 3 supplemental lighting modes
Water and dust resistant (IP67)
In Stock
Available Qty: 70
70 in stock
Camera
Image Sensor
1/1.8″ Progressive Scan CMOS
Maximum Resolution
2560 × 1440
Minimum Illumination
Color: 0.0001 Lux @ (F1.0, AGC ON)
Shutter Time
1 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens, 2.8 mm and 4 mm optional
Focal Length & FOV
2.8 mm: Horizontal 104°, Vertical 54.4°, Diagonal 126.7°; 4 mm: Horizontal 89.3°, Vertical 48.2°, Diagonal 106.5°
Lens Mount
M16
Iris Type
Fixed
Aperture
F1.0
Depth of Field
2.8 mm: 2.5 m to ∞; 4 mm: 2.8 m to ∞
Pixel Density
DORI
2.8 mm: Detect 61 m, Observe 24 m, Recognize 12 m, Identify 6 m; 4 mm: Detect 68 m, Observe 27 m, Recognize 13 m, Identify 6 m
Illuminator
Supplement Light Type
IR, White Light
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 24 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (768 × 432, 640 × 360); 60 Hz: 24 fps (768 × 432, 640 × 360)
Video Compression
Main Stream: H.265+, H.265, H.264+, H.264; Sub-Stream: H.265, H.264, MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile, Main Profile, High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR, VBR
Region of Interest (ROI)
1 fixed region for main stream
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Audio
Audio Type
Mono sound
Audio Compression
G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
Audio Bit Rate
64 Kbps (G.711), 16 Kbps (G.722.1), 16 Kbps (G.726), 32–160 Kbps (MP2L2), 16–64 Kbps (AAC-LC)
Audio Sampling Rate
8 kHz / 16 kHz
Environment Noise Filtering
Yes
Network
Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP
Simultaneous Live View
Up to 6 channels
API
ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Security
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for ONVIF, security audit log, host authentication (MAC address)
User / Host
Up to 32 users with 3 user levels: Administrator, Operator, and User
Client Software
iVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+; Plug-in-free live view: Chrome 80+, Firefox 80+, Edge 89+
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance; adjustable via client software or web browser
Day / Night Switch
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
120 dB
Signal-to-Noise Ratio (SNR)
≥ 52 dB
Image Enhancement
BLC, HLC, 3D DNR
Privacy Mask
4 programmable polygon privacy masks
Interface
Ethernet Interface
1 RJ45 10/100 Mbps self-adaptive Ethernet port
On-Board Storage
Not available
Built-in Microphone
Yes, 1 built-in microphone
Built-in Speaker
Not available
Reset Key
Not available
Event
Basic Event
Motion detection with alarm triggering by specified target types (human and vehicle), video tampering alarm, exception
Linkage
Upload to FTP, notify surveillance center, send email, trigger recording, trigger capture
General
Power Supply
12 VDC ± 25%, 0.58 A, max. 7 W, Ø5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 9 W
Material
Cover: Plastic; Main Body: Metal
Dimensions
69.1 × 66.9 × 172.9 mm (2.7 × 2.6 × 6.8 inches)
Package Dimensions
210 × 116 × 106 mm (8.3 × 4.6 × 4.2 inches)
Weight
Approx. 310 g (0.7 lb.)
Package Weight
Approx. 465 g (1.0 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Languages
English, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German
General Function
Heartbeat, mirror, flash log, password reset via email, password protection, anti-banding
Flashing Light
Not available
Approval
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Safety
CB: IEC 62368-1:2014+A11; CE-LVD: EN 62368-1:2014/A11:2017
Environment
CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU
Protection
IP67: IEC 60529-2013
