DHI-LM20-A20OS
Features：
·Light and cost-effective plastic housing
·Physical resolution of 1600×900
·5ms fast response time with no image blurring or ghosting
·Support multiple signal inputs including HDMI,VGA
In Stock
Available Qty: 1
Model Information
Model

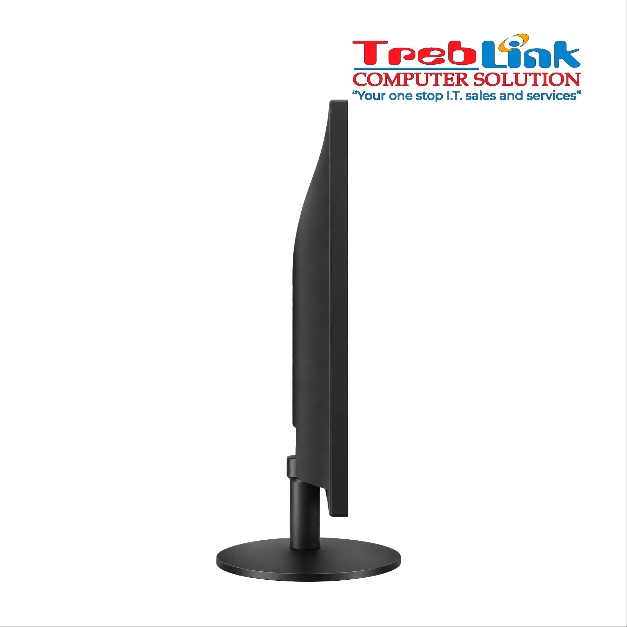

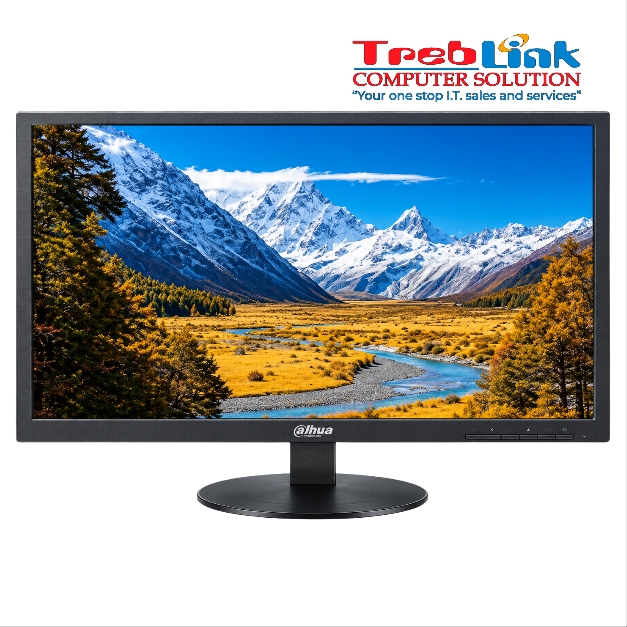

Dahua DHI-LM20-A202S
Product Type
19.5-inch Monitor
Display
Screen Size
19.5 inches
Panel Type
TN
Aspect Ratio
16:9
Resolution
1600 × 900
Backlight
LED
Brightness (Typical)
250 nits
Contrast Ratio
600:1
Display Colors
16.7 million (6-bit + FRC)
Viewing Angle (H/V)
90° (Horizontal) / 65° (Vertical)
Response Time
5 ms
Maximum Refresh Rate
75 Hz
Signal Inputs and Outputs
VGA Input
1 × VGA (D-Sub)
HDMI Input
1 × HDMI
Audio Input
1 × Audio In
Built-in Speakers
2 × 1W speakers
Power Specifications
Power Supply
DC 12V, 2A
Power Type
External
Power Consumption (Standard)
22W
Power Consumption (Standby)
≤0.5W
Physical Specifications
Net Weight
2.1 kg
Gross Weight
3.1 kg
VESA Mount
100 × 100 mm
Dimensions (W × H × D)
464.8 × 283.5 × 48.3 mm
Package Dimensions (W × H × D)
525 × 378 × 128 mm
Operating Environment
Operating Temperature
0°C to 40°C (32°F to 104°F)
Operating Humidity
10%–85%
Accessories
Included Accessories
Standard HDMI Cable, Power Adapter, Monitor Base
Certifications
Certification
CE
