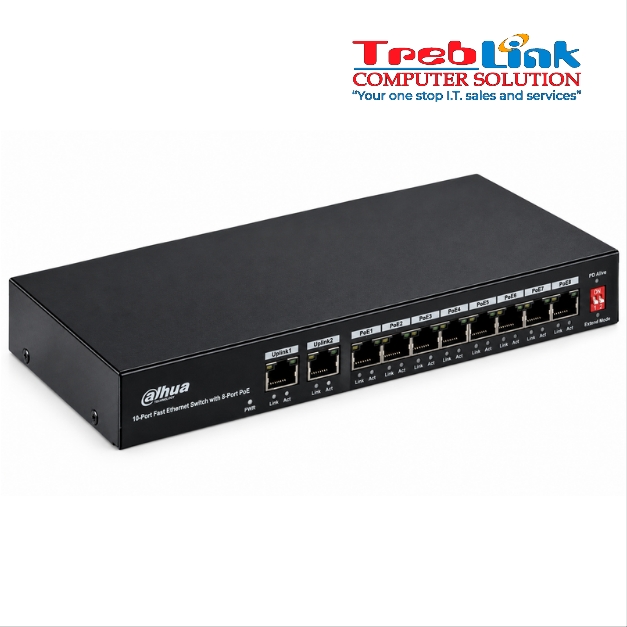

DH-PFS3010-8ET-65 10-Port Fast Ethernet Switch with 8-Port Po
The 8-Port PoE switch with 10/100 Mbps is cost-effective and accessible.
It supports scenarios with 1 to 8 access points and is widely used in secu-
rity monitorning network, such as supermarkets, hospitals and stations.
Support eight 10/100M PoE power supply ports, and two 10/100M
uplink ports
· Support 802.3af and 802.3at standards
· Operating Temperature: -10°C to +55°C
· Support 250 m long distance PoE tansmission
· Support PoE watchdog
Out of Stock
Currently unavailable
Sold Out
Hardware
Data Transmission Port
8 PoE ports with 10/100 Mbps Base-TX
2 uplink ports with 10/100 Mbps Base-TX
Power Supply
AC 100–240V
Operating Temperature
-10°C to +55°C (-14°F to 131°F)
Operating Humidity
10%–90%
Power Consumption
Idling: 1.0W
Full Load: 65W PoE
PoE Budget
Port 1–8: ≤30W per port
Total PoE Budget: ≤65W
PoE Standard
IEEE 802.3af, IEEE 802.3at
PoE Pin Assignment
PoE: 1, 2, 4, 5 (V+); 3, 6, 7, 8 (V-)
Performance
Switching Capacity
2.0 Gbps
Packet Forwarding Rate
1.49 Mpps
MAC Table Size
2K
Jumbo Frame
2048 bytes
Communication Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3X
Protection
ESD Protection
Air Discharge: 8kV
Contact Discharge: 6kV
Thunder Protection
Common Mode: 6kV
Differential Mode: 4kV
Physical Specifications
Net Weight
0.76 kg (1.68 lb)
Gross Weight
1.3 kg (2.87 lb)
Product Dimensions (W × L × H)
242.5 × 122.9 × 35.0 mm
(9.55 × 4.84 × 1.38 inches)
Packaging Dimensions – Packing Box (W × L × H)
303 × 262 × 72 mm
(11.92 × 10.31 × 2.83 inches)
Packaging Dimensions – Protective Box (W × L × H)
549 × 325 × 397 mm
(21.61 × 12.80 × 15.63 inches)
Package Quantity
10 devices per package
Certifications
Compliance
CE: EN60950
FCC
