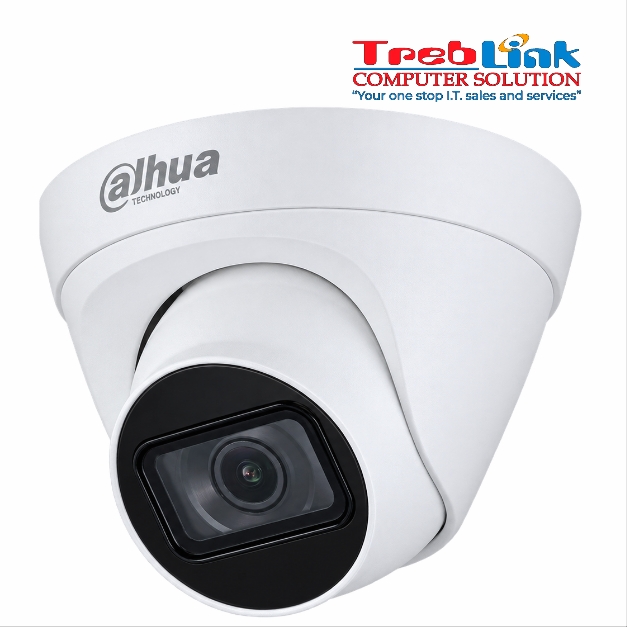

DH-IPC-HDW1230T1-S6 2MP entry-level fixed-focal eyeball network camera
With features of simple installation, easy operation, and high
performance-cost ratio, Dahua Entry series network camera is applicable to small and medium-sized scenes, such as homes/residences, small-sized retail stores, and other small and medium-sized enterprises.
Out of Stock
Currently unavailable
Sold Out
Model Information
Product Type
2MP IR Network Camera
Image Sensor
1/2.9″ CMOS
Max. Resolution
1920 × 1080 (Full HD)
ROM / RAM
128 MB / 128 MB
Scanning System
Progressive
Camera Performance
Electronic Shutter Speed
Auto / Manual, 1/3 s–1/100,000 s
Minimum Illumination
0.01 lux @ F2.0 (Color, 30 IRE); 0.001 lux @ F2.0 (B/W, 30 IRE); 0 lux with illuminator on
S/N Ratio
Greater than 56 dB
IR Illumination Distance
Up to 30 m (98.43 ft)
Illuminator Control
Auto / Manual
Illuminator
1 IR LED
Angle Adjustment
Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°
Lens
Lens Type
Fixed-focal
Lens Mount
M12
Focal Length
2.8 mm / 3.6 mm
Maximum Aperture
F2.0
Field of View (2.8 mm)
Horizontal: 101°; Vertical: 56°; Diagonal: 117°
Field of View (3.6 mm)
Horizontal: 83°; Vertical: 45°; Diagonal: 98°
Iris Control
Fixed
Close Focus Distance
2.8 mm: 0.6 m; 3.6 mm: 0.9 m
DORI Distance
2.8 mm Lens
Detect: 45.5 m; Observe: 18.2 m; Recognize: 9.1 m; Identify: 4.6 m
3.6 mm Lens
Detect: 52.4 m; Observe: 21.0 m; Recognize: 10.5 m; Identify: 5.2 m
DORI Standard
EN-62676-4
Intelligence Features
Smart Motion Detection
SMD Plus
Smart Search
Works with Smart NVR for refined intelligent search, event extraction, and event video merging
Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Smart Codec
Smart H.265+; Smart H.264+
Main Stream
1920 × 1080 @ 1–25/30 fps
Sub Stream
704 × 576 @ 1–25 fps / 704 × 480 @ 1–30 fps
Stream Capability
2 streams
Supported Resolutions
1080p; 1.3M (1280 × 960); 720p; D1; VGA; CIF
Bit Rate Control
CBR / VBR
Video Bit Rate
H.264: 32–4096 kbps; H.265: 12–4096 kbps
Day / Night
Auto (ICR) / Color / B/W
Backlight Compensation
BLC; HLC
Wide Dynamic Range
DWDR
White Balance
Auto; Natural; Street Lamp; Outdoor; Manual; Regional Custom
Gain Control
Auto / Manual
Noise Reduction
3D NR
Motion Detection
On / Off; 4 rectangular areas
Region of Interest (RoI)
4 areas
Smart Illumination
Yes
Image Rotation
0° / 90° / 180° / 270°; 90° and 270° supported at 1080p and lower resolutions
Mirror
Yes
Privacy Masking
4 areas
Alarm
Alarm Events
Network disconnection; IP conflict; illegal access; motion detection; video tampering; security exception; SMD
Network & Connectivity
Network Port
RJ-45 (10/100 Base-T)
SDK / API
Supported
Network Protocols
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
Interoperability
ONVIF Profile S & T; CGI
User / Host Capacity
6 users; total bandwidth: 24 Mbps
Storage
FTP
Supported Browsers
Internet Explorer; Google Chrome; Mozilla Firefox
Management Software
Smart PSS Lite; DSS; DMSS; DoLynk Care
Mobile Client
iOS; Android
Security
Authentication
Digest; WSSE
Account Protection
Account lockout; security logs
Certificate Management
Generation and importing of X.509 certificates
Secure Communication
HTTPS
System Protection
Trusted boot; trusted execution; trusted upgrade
