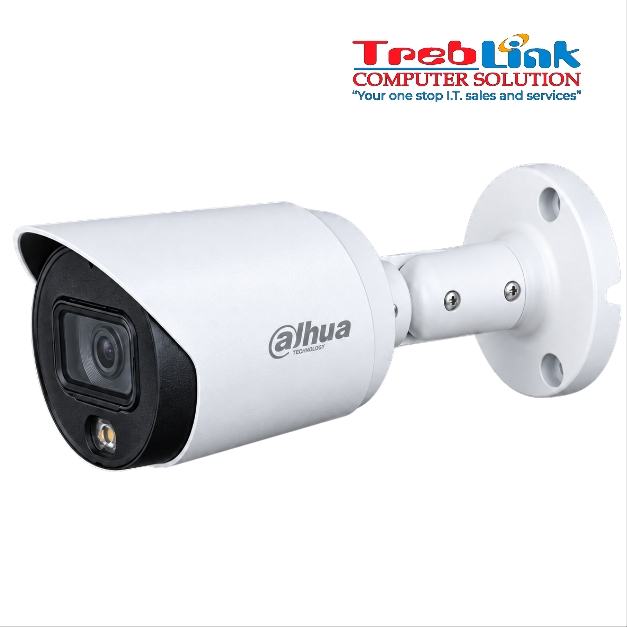

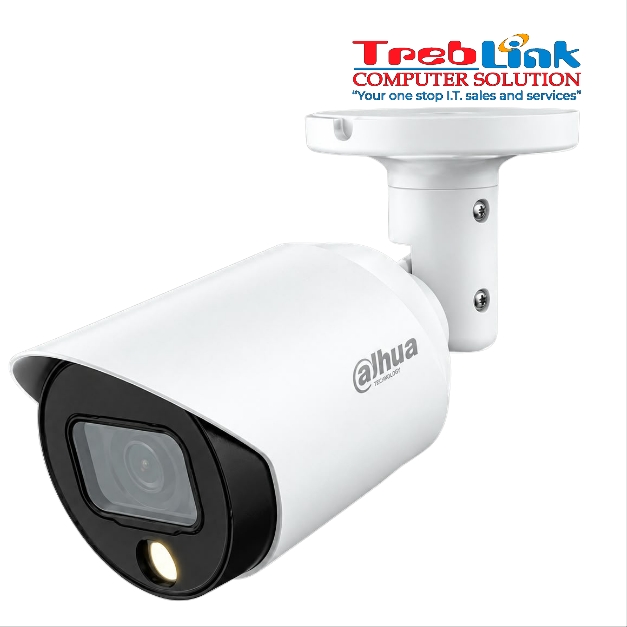

DH-HAC-HFW1509TN(-A)-LED 5MP Full-color HDCVI Bullet Camera
•Max 25 fps@5MP (16:9 video output)
•Full-Color; 120 dB true WDR, 3D NR
•20 m illumination distance.
•Metal
•Built-in mic
In Stock
Available Qty: 1
Camera
Image Sensor
5MP CMOS
Max. Resolution
2880 (H) × 1620 (V)
Pixel
5MP
Scanning System
Progressive
Electronic Shutter Speed
PAL: 1/3 s–1/100,000 s; NTSC: 1/4 s–1/100,000 s
S/N Ratio
> 65 dB
Minimum Illumination
0.001 lux/F1.0, 0 lux with warm light on
Illumination Distance
20 m (65.61 ft)
Illuminator On/Off Control
Auto; Manual
Illuminator Number
1
Pan/Tilt/Rotation Range
Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°
Lens
Lens Type
Fixed lens
Mount Type
M12
Focal Length
2.8 mm; 3.6 mm
Maximum Aperture
F1.0
Field of View
2.8 mm: Horizontal 112°, Vertical 57°, Diagonal 132°
3.6 mm: Horizontal 88°, Vertical 46°, Diagonal 104°
Iris Type
Fixed iris
Close Focus Distance
2.8 mm: 1.6 m (5.25 ft); 3.6 mm: 2.3 m (7.5 ft)
DORI Distance
2.8 mm Lens
Detect: 67.4 m (212.3 ft); Observe: 27.0 m (88.6 ft); Recognize: 13.5 m (44.3 ft); Identify: 6.7 m (22.0 ft)
3.6 mm Lens
Detect: 80.0 m (262.5 ft); Observe: 32.0 m (105.0 ft); Recognize: 16.0 m (52.5 ft); Identify: 8.0 m (26.2 ft)
Video
Frame Rate
CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps
NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps
NTSC: 4M@30 fps
CVBS:
PAL: 960H
NTSC: 960H
Resolution
5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576 / 960 × 480)
BLC
BLC / HLC / WDR / HLC-Pro
WDR
120 dB
White Balance
Auto; Area WB
Gain Control
Auto; Manual
Noise Reduction
3D NR
Smart Light
Yes
Mirror
Off / On
Privacy Masking
Off / On (8 rectangular areas)
Certifications
CE
EN55032, EN55024, EN50130-4, EN60950-1
FCC
CFR 47 FCC Part 15 Subpart B, ANSI C63.4-2014
UL
UL60950-1 + CAN/CSA C22.2 No.60950-1
Port
Video Output
CVI / TVI / AHD / CVBS selectable via one BNC port
Audio Input
One-channel built-in microphone (-A)
Power
Power Supply
12 V ±30% DC
Power Consumption
Maximum 4.4 W (12 V DC, warm light on)
Environment
Operating Temperature
−40 °C to +60 °C (−40 °F to +140 °F); relative humidity below 95% (non-condensing)
Storage Temperature
−40 °C to +60 °C (−40 °F to +140 °F); relative humidity below 95% (non-condensing)
Protection Grade
IP67
Structure
Casing
Full metal casing
Camera Dimensions
174.5 × 72.3 × 70.6 mm (6.87 × 2.85 × 2.78 in)
Net Weight
0.36 kg (0.79 lb)
Gross Weight
0.49 kg (1.08 lb)
<
