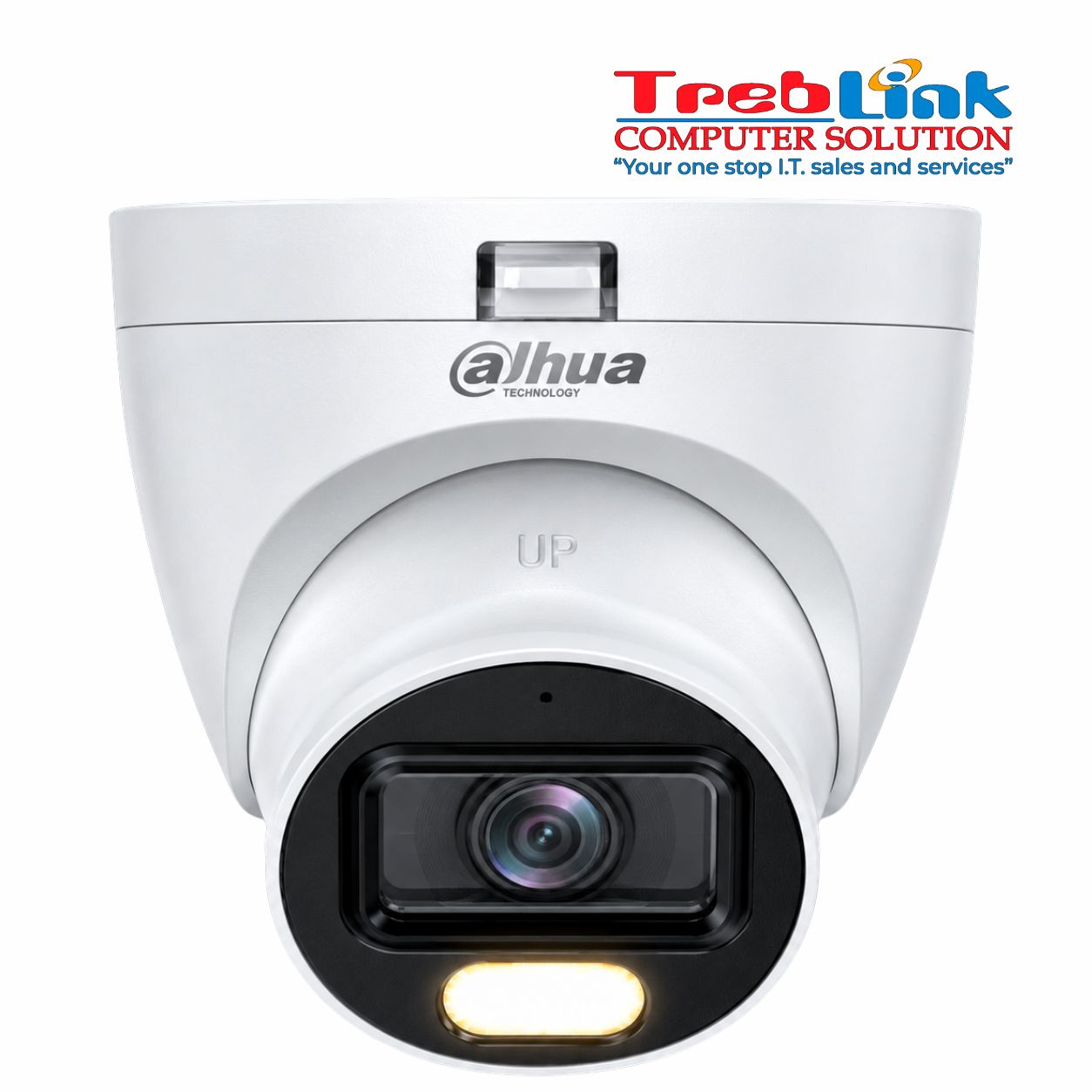

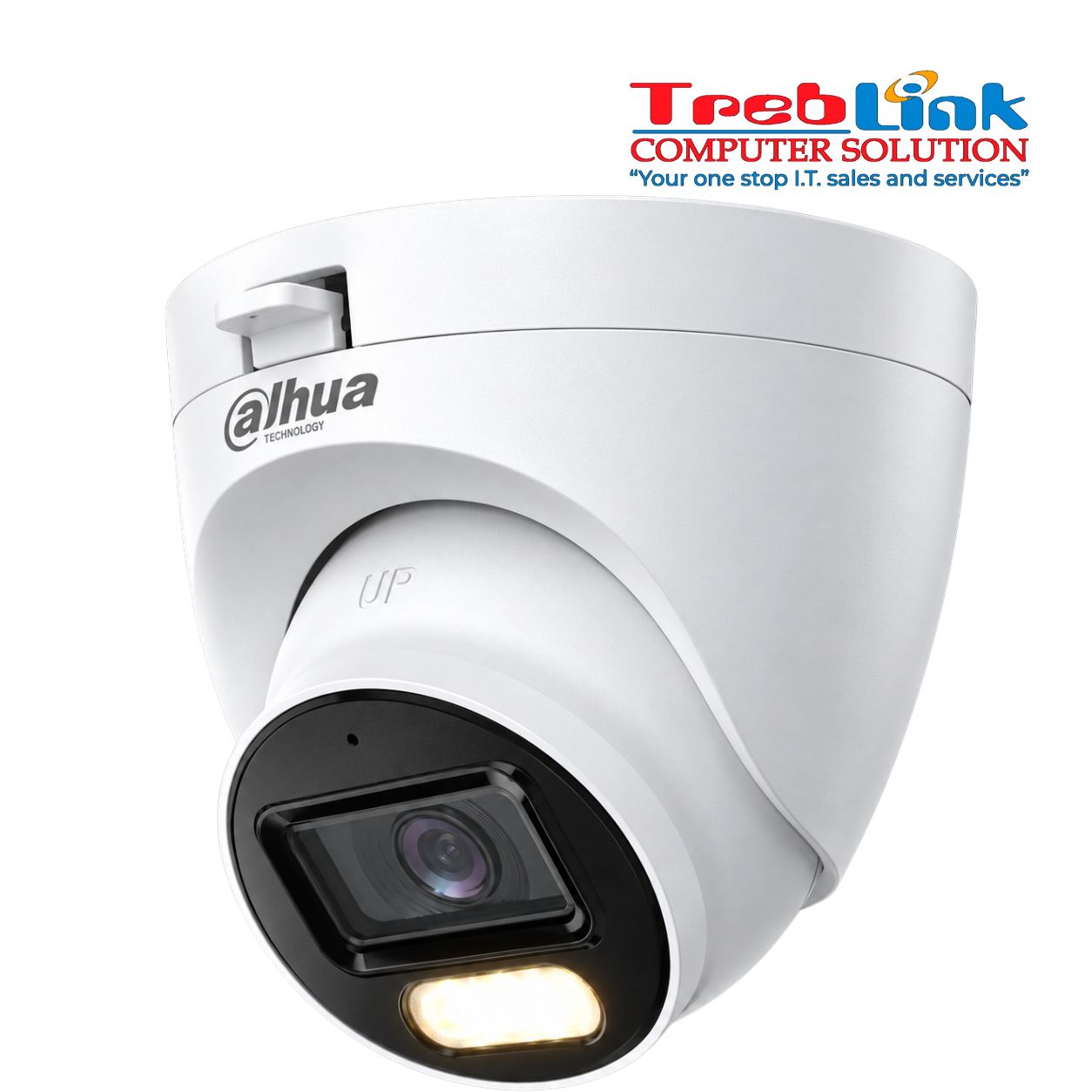

DH-HAC-HDW1509TLQN-A-LED 5MP Full-color Starlight HDCVI Eyeball Camera
· Full-color starlight
· 20 m LED distance
· Max. 20fps@5MP
· CVI/CVBS/AHD/TVI switchable
· Built-in mic (-A)
· 3.6 mm fixed lens (2.8 mm optional)
· IP67, 12V±30% DC
In Stock
Available Qty: 8
Camera
Image Sensor
5 MP CMOS
Max. Resolution
2880 (H) × 1620 (V)
Pixel
5 MP
Scanning System
Progressive
Electronic Shutter Speed
PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s
S/N Ratio
> 65 dB
Min. Illumination
0.001 lux/F1.0, 0 lux (warm light on)
Illumination Distance
20 m (65.61 ft)
Illuminator On/Off Control
Auto; Manual
Illuminator Number
1
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type
Fixed lens
Mount Type
M12
Focal Length
2.8 mm; 3.6 mm
Max. Aperture
F1.0
Field of View
2.8 mm: H: 112°; V: 57°; D: 132°
3.6 mm: H: 88°; V: 46°; D: 104°
Iris Type
Fixed iris
Close Focus Distance
2.8 mm: 1.6 m (5.25 ft)
3.6 mm: 2.3 m (7.5 ft)
DORI Distance (2.8 mm)
Detect: 67.4 m (212.3 ft)
Observe: 27.0 m (88.6 ft)
Recognize: 13.5 m (44.3 ft)
Identify: 6.7 m (22.0 ft)
DORI Distance (3.6 mm)
Detect: 80.0 m (262.5 ft)
Observe: 32.0 m (105.0 ft)
Recognize: 16.0 m (52.5 ft)
Identify: 8.0 m (26.2 ft)
Video
Frame Rate – CVI
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps
NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
Frame Rate – AHD
PAL: 4M@25 fps
NTSC: 4M@30 fps
Frame Rate – TVI
PAL: 4M@25 fps
NTSC: 4M@30 fps
Frame Rate – CVBS
PAL: 960H
NTSC: 960H
Resolution
5M (2880 × 1620)
4M (2560 × 1440)
1080p (1920 × 1080)
960H (960 × 576 / 960 × 480)
BLC
BLC/HLC/WDR/HLC-Pro
WDR
120 dB
White Balance
Auto; Manual
