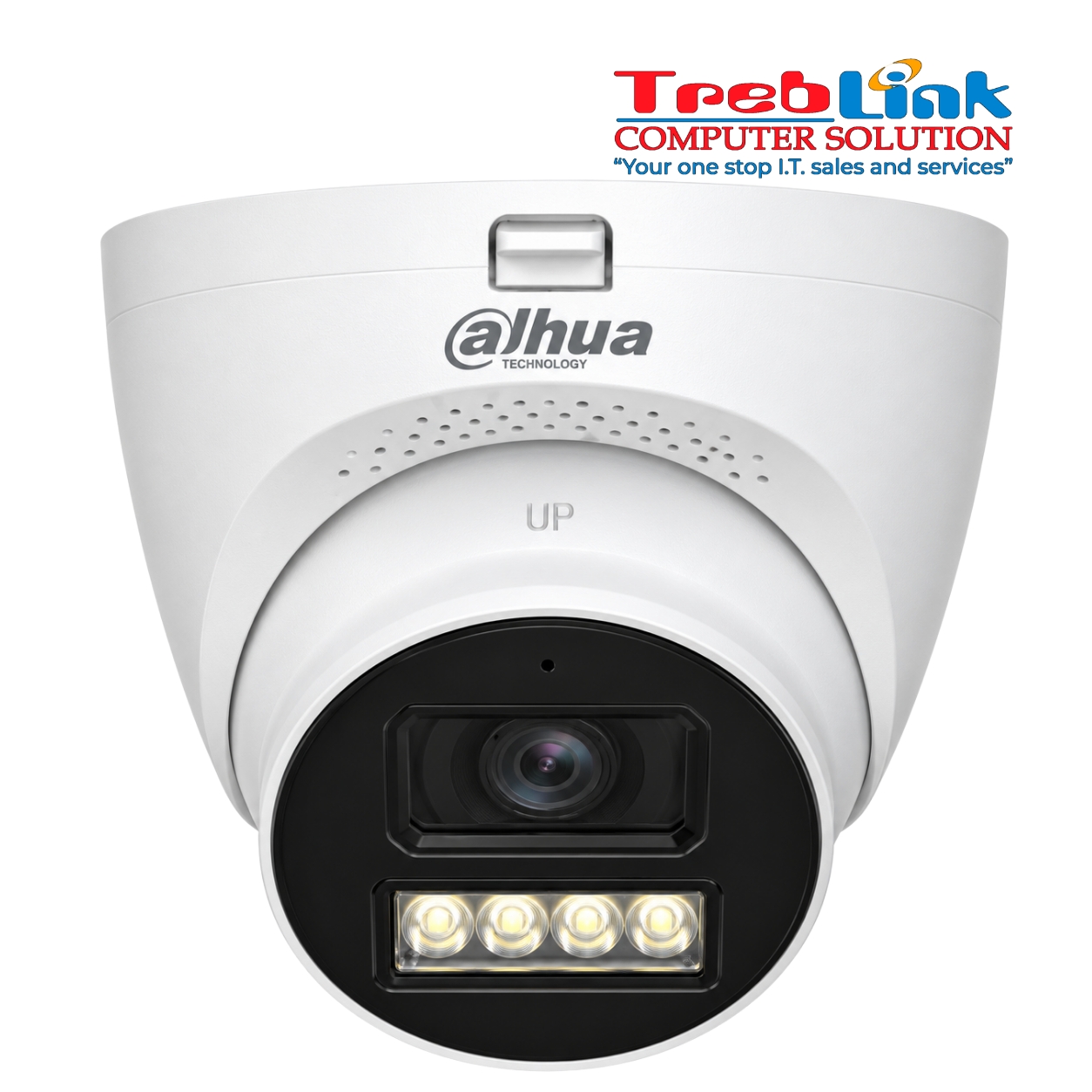

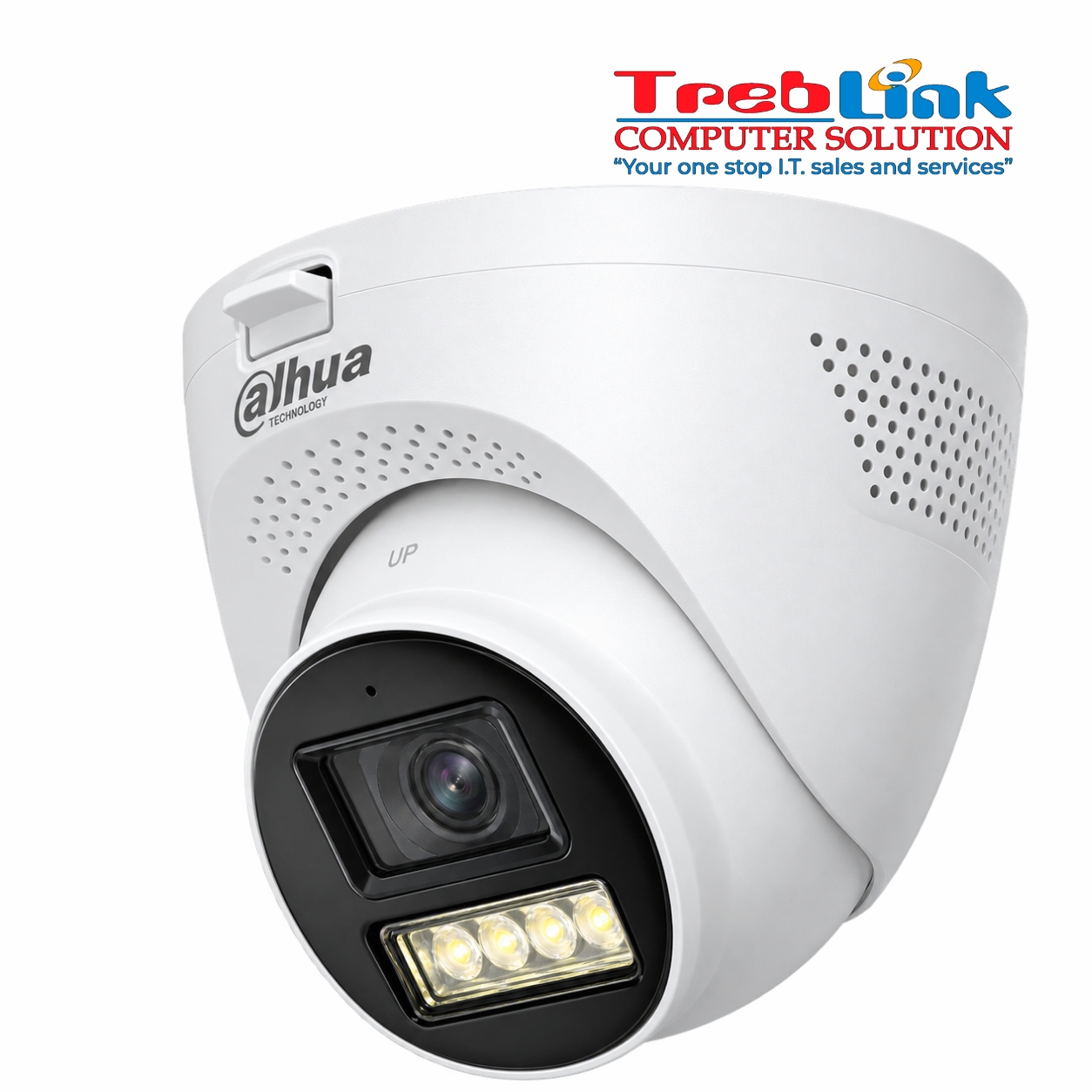

DH-HAC-HDW1200TQN-IL-T 2MP Smart Dual Light HDCVI Two-way Talk Fixed-focal Eyeball Camera
•High-Quality Imaging with 1080P Resolution
•Smart Dual Light: Built-in IR and LED Lights with 3 Illumination Modes Supported
•40 m Illumination Distance for Superior Camera Image Quality
•High-Quality Two-Way Talk Technology: Built-In Mic and High-Power Speaker
•Smart Light+ : Clear Details with Advanced LED Processing Technology
•3DNR & DWDR & Super Adapt Ensures Clear Details in Strong Backlight Conditions
•Effortless Signal Selection with DIP Switch
`Time-saving Installation with Quick-to-install Structure
•IP67 Ratings for Protection Against Harsh Environments
In Stock
Available Qty: 14
Camera
Image Sensor
2 MP CMOS
Max. Resolution
1920 (H) × 1080 (V)
Scanning System
Progressive
Electronic Shutter Speed
PAL: 1/25 s–1/100,000 s; NTSC: 1/30 s–1/100,000 s
Minimum Illumination
0.01 lux@F2.0 (Color, 30 IRE); 0.001 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on)
S/N Ratio
>65 dB
Illumination Distance
IR: 25 m (82.02 ft); Warm Light: 25 m (82.02 ft)
Illuminator On/Off Control
Auto/Manual
Illuminator Number
2 (Multi-core light)
Angle Adjustment
Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°
Lens
Lens Type
Fixed-focal
Lens Mount
M12
Focal Length
2.8 mm; 3.6 mm
Max. Aperture
F2.0
Field of View
2.8 mm: H: 111.3°, V: 60.8°, D: 134.2°; 3.6 mm: H: 89°, V: 48.2°, D: 109.1°
Iris Control
Fixed
Close Focus Distance
2.8 mm: 0.5 m (1.64 ft); 3.6 mm: 0.7 m (2.30 ft)
DORI Distance (2.8 mm)
Detect: 40.6 m (133.20 ft); Observe: 16.2 m (53.15 ft); Recognize: 8.1 m (26.57 ft); Identify: 4.1 m (13.45 ft)
DORI Distance (3.6 mm)
Detect: 49.9 m (163.71 ft); Observe: 20.0 m (65.62 ft); Recognize: 10.0 m (32.81 ft); Identify: 5.0 m (16.40 ft)
DORI Definition
DORI (Detect, Observe, Recognize, Identify) follows EN-62676-4 and defines the ability to distinguish people or objects within a covered area. These distances do not represent intelligent function distances. Refer to the installation and commissioning manual or project design tool for intelligent function distances.
Video
Video Frame Rate
CVI: PAL 1080p@25 fps, NTSC 1080p@30 fps; AHD: PAL 1080p@25 fps, NTSC 1080p@30 fps; TVI: PAL 1080p@25 fps, NTSC 1080p@30 fps; CVBS: PAL 960H, NTSC 960H
Resolution
1080p (1920 × 1080); 960H (960 × 576 / 960 × 480)
Day/Night
Auto (ICR)/Color/B/W
BLC
BLC; HLC; WDR
WDR
DWDR
White Balance
Auto
Gain Control
Auto/Manual
Noise Reduction
3D NR
Illumination Mode
Smart IR & WL (CVI, TVI); WL Mode; IR Mode
Mirror
Yes
Privacy Masking
Off/On (8 rectangular areas)
Certification
CE-LVD
EN 62368-1
CE-EMC
EN 55032; EN 55035
Audio
Built-in Microphone
Yes
Camera Audio
CVI; TVI
Pick-up Distance
8 m (26.25 ft)
Two-way Talk
Yes (CVI, TVI)
Speaker
Yes
Speaker Distance
5 m (16.40 ft)
Port
Video Output
CVI/TVI/AHD/CVBS selectable through one BNC port using a DIP switch
Power
Power Supply
12 VDC (±30%)
Power Consumption
Max. 4.62 W (12 VDC, IR on)
Environment
Operating Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity
<95% RH, non-condensing
Storage Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity
<95% RH, non-condensing
Anti-corrosion Level
Basic Protection. Designed for general use, including areas without specific anti-corrosion protection requirements.
Structure
Casing Material
Plastic
Product Dimensions
Φ97.4 mm × 90.4 mm (Φ3.83″ × 3.56″)
Net Weight
0.17 kg (0.37 lb)
Gross Weight
0.27 kg (0.60 lb)
Installation
Wall mount; ceiling mount; vertical pole mount
