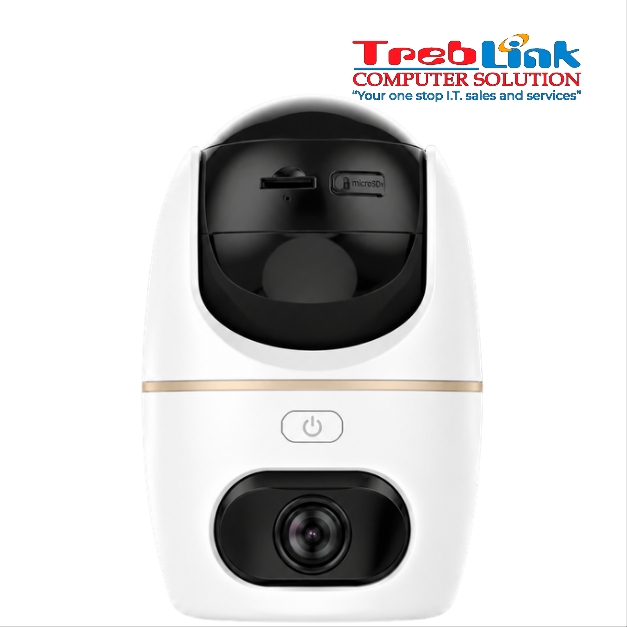

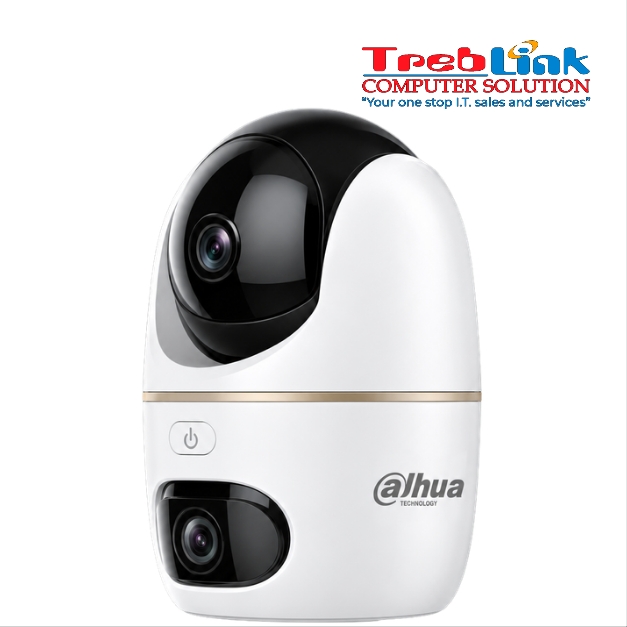

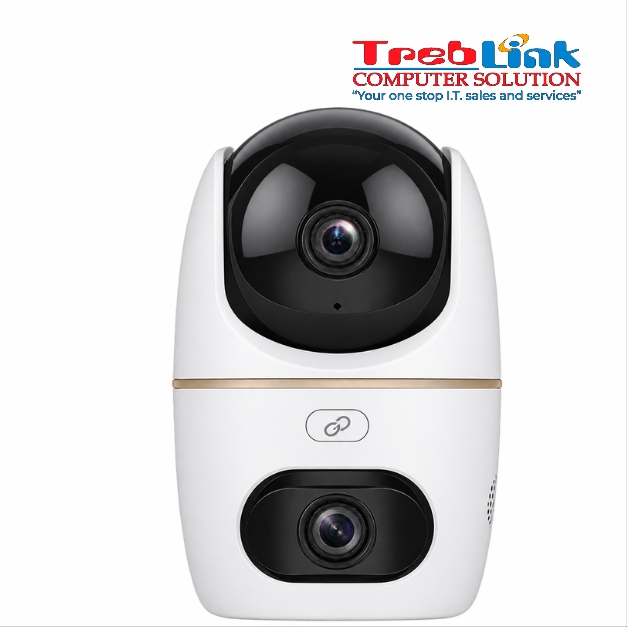

DH-H5D-5F 5+5MP Indoor Wi-Fi Dual-Lens Pan & Tilt Camera
•Coordinated Fixed Lens and PT Lens Monitoring Ensures Complete Vigilance in Security
•One Camera for 360° View Without Blind Spots
•AI Human & Pet Detection
Out of Stock
Currently unavailable
Sold Out
Camera Specifications (2.8 mm + 6 mm)
Fixed Lens Image Sensor
1/3″ CMOS
Fixed Lens Max. Resolution
2880 (H) × 1620 (V)
Fixed Lens Illumination Distance
Up to 30 m (98.43 ft) (IR)
Fixed Lens Illuminator Number
2 (IR LED)
Fixed Lens Angle Adjustment
0° to 15°
Fixed Lens Type
Fixed-focal
Fixed Lens Focal Length
2.8 mm
Fixed Lens Max. Aperture
F2.0
Fixed Lens Field of View
H: 88°; V: 48°; D: 104°
PT Lens Image Sensor
1/3″ CMOS
PT Lens Max. Resolution
2880 (H) × 1620 (V)
PT Lens IR Illumination Distance
Up to 50 m (164.04 ft)
PT Lens Warm Light Distance
Up to 40 m (131.23 ft)
PT Lens Illuminator Number
2 (IR LED); 1 (Warm light)
PT Lens Angle Adjustment
Pan: 0° to 349°; Tilt: –5° to 90°
PT Lens Type
Fixed-focal
PT Lens Focal Length
6 mm
PT Lens Max. Aperture
F1.6
PT Lens Field of View
H: 49°; V: 26°; D: 57°
Intelligence
Human Detection
Yes
Pet Detection
Yes
Camera Specifications (3.6 mm + 3.6 mm)
Fixed Lens Image Sensor
1/3″ CMOS
Fixed Lens Max. Resolution
2880 (H) × 1620 (V)
Fixed Lens Illumination Distance
Up to 30 m (98.43 ft) (IR)
Fixed Lens Illuminator Number
2 (IR LED)
Fixed Lens Angle Adjustment
0° to 15°
Fixed Lens Type
Fixed-focal
Fixed Lens Focal Length
3.6 mm
Fixed Lens Max. Aperture
F2.0
Fixed Lens Field of View
H: 86°; V: 46°; D: 104°
PT Lens Image Sensor
1/3″ CMOS
PT Lens Max. Resolution
2880 (H) × 1620 (V)
PT Lens IR Illumination Distance
Up to 30 m (98.43 ft)
PT Lens Warm Light Distance
Up to 30 m (98.43 ft)
PT Lens Illuminator Number
2 (IR LED); 1 (Warm light)
PT Lens Angle Adjustment
Pan: 0° to 349°; Tilt: –5° to 90°
PT Lens Type
Fixed-focal
PT Lens Focal Length
3.6 mm
PT Lens Max. Aperture
F2.0
PT Lens Field of View
H: 86°; V: 46°; D: 104°
Audio and Video
Video Compression
H.265
Video Frame Rate
Main stream: 2880 × 1620 @ 15 fps
Sub stream: 640 × 360 @ 15 fps
Video Frame Rate Note
The values above are the maximum frame rates of each stream. For multiple streams, the values depend on the total encoding capacity.
Video Bit Rate
H.265: 768 kbps–4096 kbps
Day/Night
Auto (ICR) / Color / B/W
WDR
DWDR
Motion Detection
Yes
Image Rotation
0° / 180°
Built-in Microphone
Yes, built-in mic
Built-in Speaker
Yes, built-in speaker
Audio Compression
G.711a
Network
Network Port
RJ-45 (10/100 Base-T)
Wi-Fi Standard
IEEE 802.11a/b/g/n/ac/ax
Wi-Fi Frequency
2.4–2.4835 GHz (2.4 G); 5.15–5.25 GHz (5 G)
Wi-Fi EIRP
≤20 dBm (2.4 GHz); ≤23 dBm @ 5150–5250 MHz (5 GHz)
Wi-Fi Pairing
Bluetooth pairing
Storage
Memory Card
Micro SD card, supports up to 256 GB
Software and Compatibility
Management Software
DMSS
Mobile Client
iOS; Android
Functions
Abnormal Sound Alarm
Yes
Privacy Mode
Yes
General
Certifications
CE
Power Supply
5 VDC
Power Consumption
Basic: 2.5 W; Max.: 5.4 W (streaming + IR + PT rotation)
Operating Temperature
–10 °C to +45 °C (14 °F to 113 °F)
Operating Humidity
≤95% RH, non-condensing
Casing Material
Plastic
Product Dimensions
Φ80.9 mm × 125.7 mm (3.19″ × 4.95″)
Net Weight
233 g (0.51 lb)
