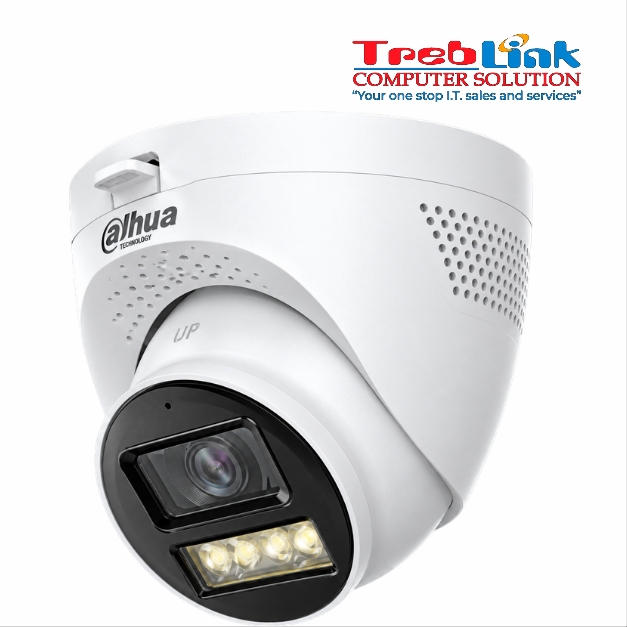

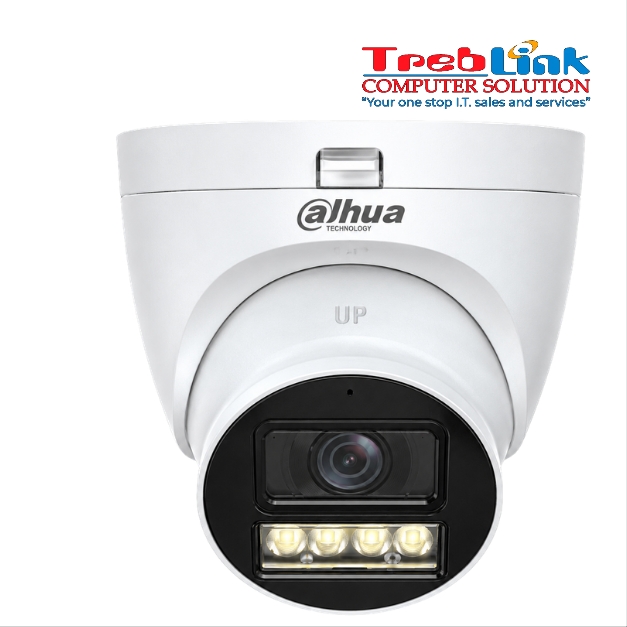

5MP HAC-HDW1500TQ-IL-T Smart Dual Light HDCVI Two-way Talk Fixed-focal Eyeball Camera
> The parameters and datasheets below can only be applied to1500-IL-T series.
> Max. 25 fps@5MP
> Two-way Talk
> Smart Light+
> Smart Dual Light.
> 40 m illumination distance.
> 3DNR
> 3.6 mm fixed lens (2.8 mm optional).
> CVI/CVBS/AHD/TVI switchable.
> IP67, 12 VDC.
In Stock
Available Qty: 16
Camera
Image Sensor
5 MP CMOS
Max. Resolution
2880 (H) × 1620 (V)
Scanning System
Progressive
Electronic Shutter Speed
PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s
Min. Illumination
0.01 lux@F1.6 (Color, 30 IRE)
0.001 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio
>65 dB
Illumination Distance
IR: 40 m (131.23 ft)
Warm light: 40 m (131.23 ft)
Illuminator On/Off Control
Auto; Manual
Illuminator Number
4 (Multi-core light)
Angle Adjustment
Pan: 0°–360°
Tilt: 0°–75°
Rotation: 0°–360°
Lens
Lens Type
Fixed-focal
Auto Focus
No
Lens Mount
M12
Focal Length
3.6 mm; 2.8 mm
Max. Aperture
F1.6
Field of View
2.8 mm: H: 113.3°; V: 62.1°; D: 134.3°
3.6 mm: H: 90.1°; V: 47.8°; D: 109.3°
Iris Control
Fixed
Close Focus Distance
2.8 mm: 0.8 m (2.62 ft)
3.6 mm: 1.3 m (4.27 ft)
DORI Distance
2.8 mm Lens
Detect: 59.8 m (196.19 ft)
Observe: 23.9 m (78.41 ft)
Recognize: 12.0 m (39.37 ft)
Identify: 6.0 m (19.69 ft)
3.6 mm Lens
Detect: 77 m (252.62 ft)
Observe: 30.8 m (101.05 ft)
Recognize: 15.4 m (50.52 ft)
Identify: 7.7 m (25.26 ft)
DORI Information
DORI (Detect, Observe, Recognize, Identify) is based on EN 62676-4 and defines the ability to distinguish people or objects within a covered area. These values do not represent intelligent function distances. Refer to the installation and commissioning manual or project design tool for intelligent function distances.
Video
Video Frame Rate
CVI:
PAL: 5M@25 fps; 5M@12.5 fps; 4M@25 fps; 1080p@25 fps
NTSC: 5M@25 fps; 5M@20 fps; 5M@10 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps
NTSC: 4M@30 fps
TVI:
PAL: 5M 16:9@20 fps
NTSC: 5M 16:9@20 fps
CVBS:
PAL: 960H
NTSC: 960H
Resolution
5M (2880 × 1620)
4M (2560 × 1440)
1080p (1920 × 1080)
720p (1280 × 720)
TVI 5M 16:9 (2960 × 1665)
Day/Night
Auto (ICR); Color; B/W
BLC
BLC; HLC; WDR
WDR
DWDR
White Balance
Auto; Area white balance
Gain Control
Auto; Manual
Noise Reduction
3D NR
Illumination Mode
Smart IR & WL (CVI, TVI); WL Mode; IR Mode
Mirror
Yes
Privacy Masking
Off/On (8 areas, rectangle)
Certification
Certifications
CE-LVD: EN 62368-1
CE-EMC: EN 55032; EN 55035
Audio
Built-in Mic
Yes
Camera Audio
CVI; TVI
Pick-up Distance
8 m (26.25 ft)
Two-way Talk
Yes (CVI, TVI)
Speaker
Yes
Speaker Distance
8 m (26.25 ft)
Port
Video Output
Video output choices of CVI/TVI/AHD/CVBS through one BNC port (DIP switch)
Power
Power Supply
12 VDC (±30%). A power adapter is recommended for supplying power to one camera.
Power Consumption
Max. 9.5 W (12 VDC, WLED on)
Environment
Operating Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity
<95% RH, non-condensing
Storage Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity
<95% RH, non-condensing
Protection
IP67
Anti-corrosion Level
Basic Protection. Designed for general use, including areas without specific anti-corrosion requirements.
Structure
Casing Material
Dome (metal + plastic) + plastic enclosure
Product Dimensions
Φ109.9 mm × 105.9 mm (Φ4.33″ × 4.17″)
Net Weight
0.50 kg (1.1 lb)
Gross Weight
0.64 kg (1.41 lb)
Installation
Wall mount; ceiling mount; vertical pole mount
